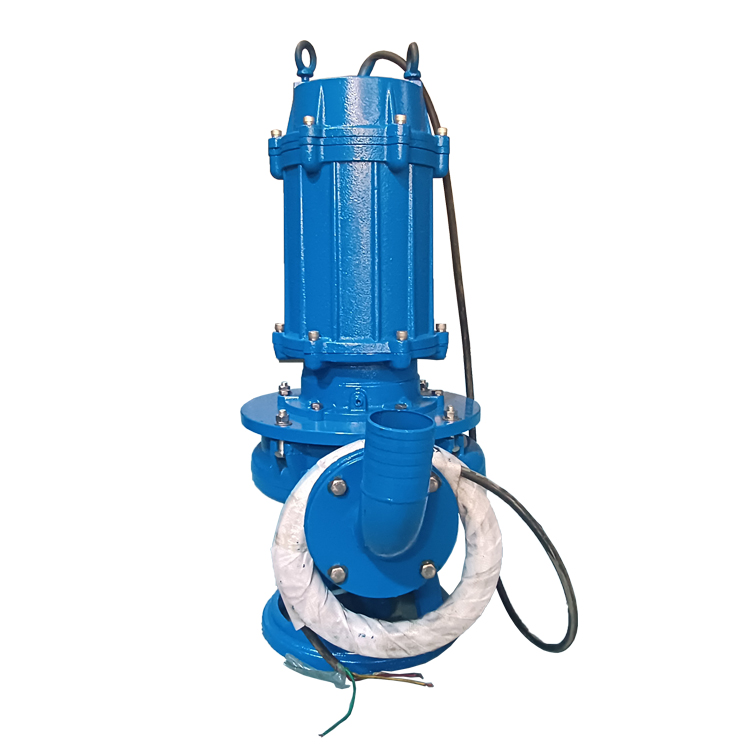

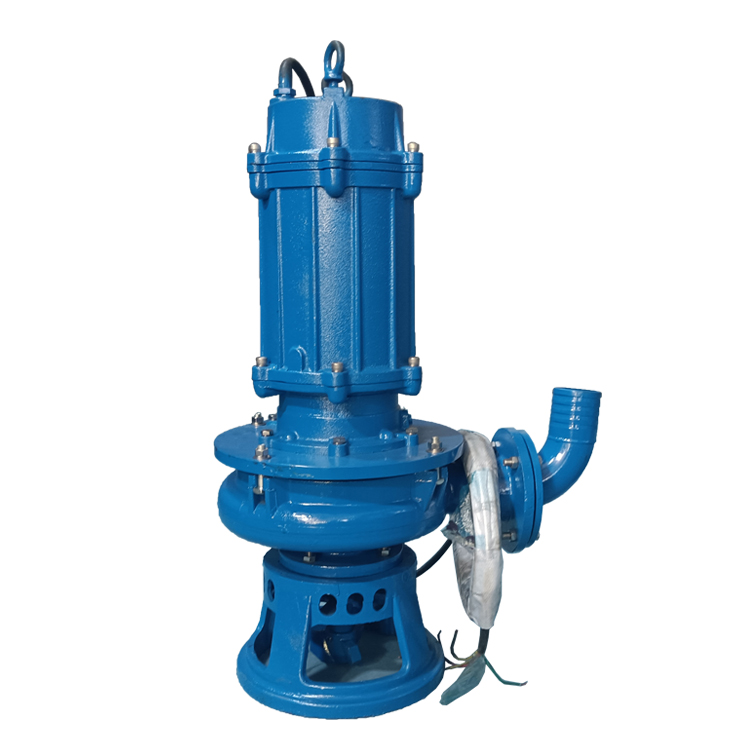

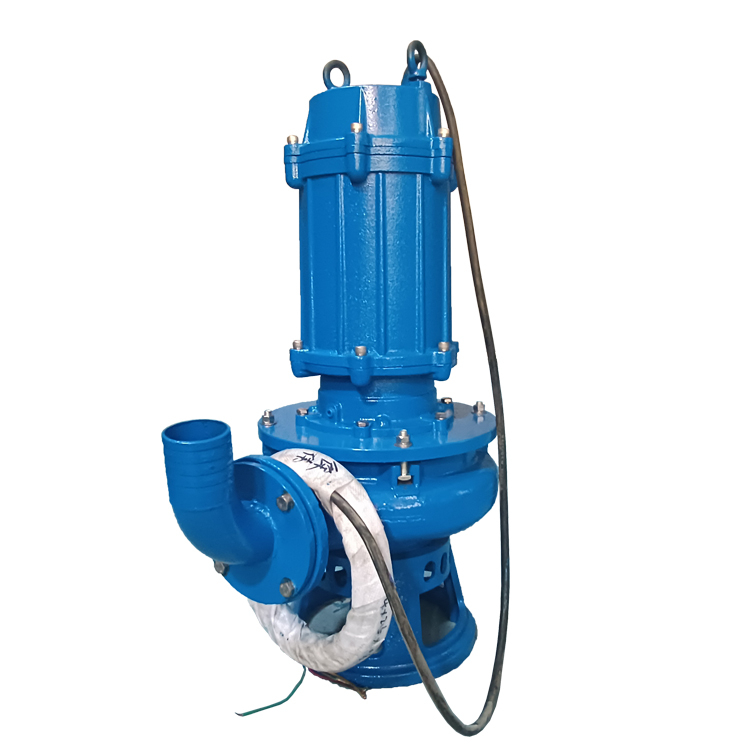

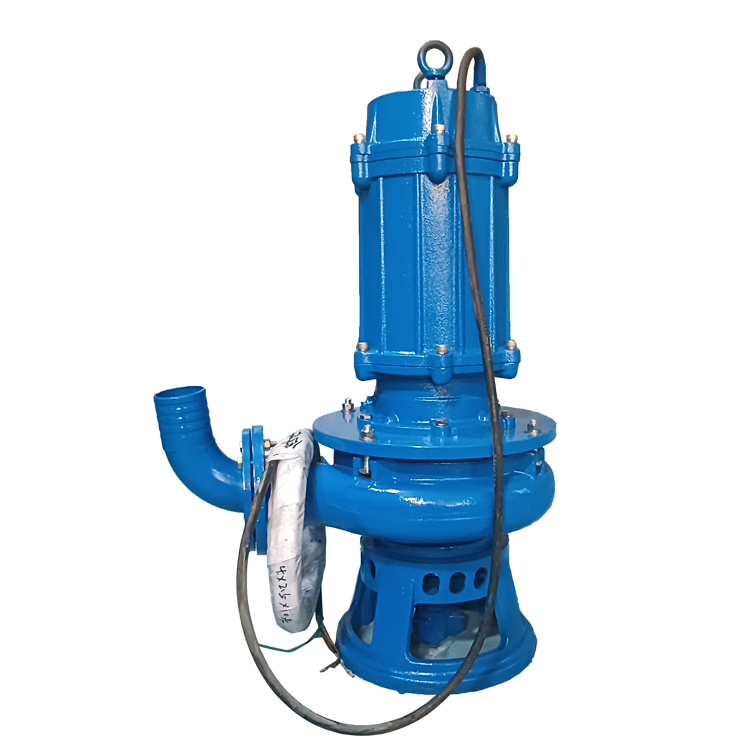

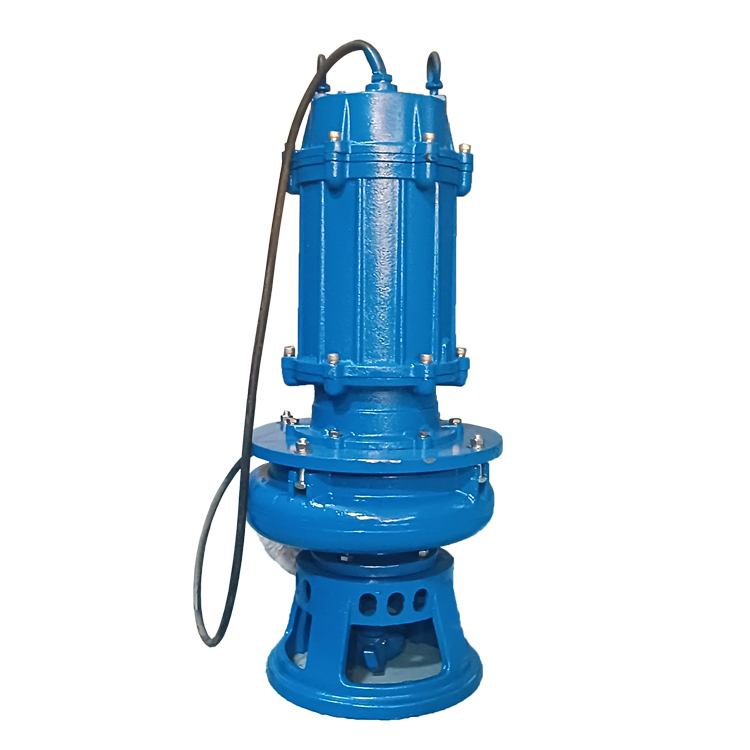

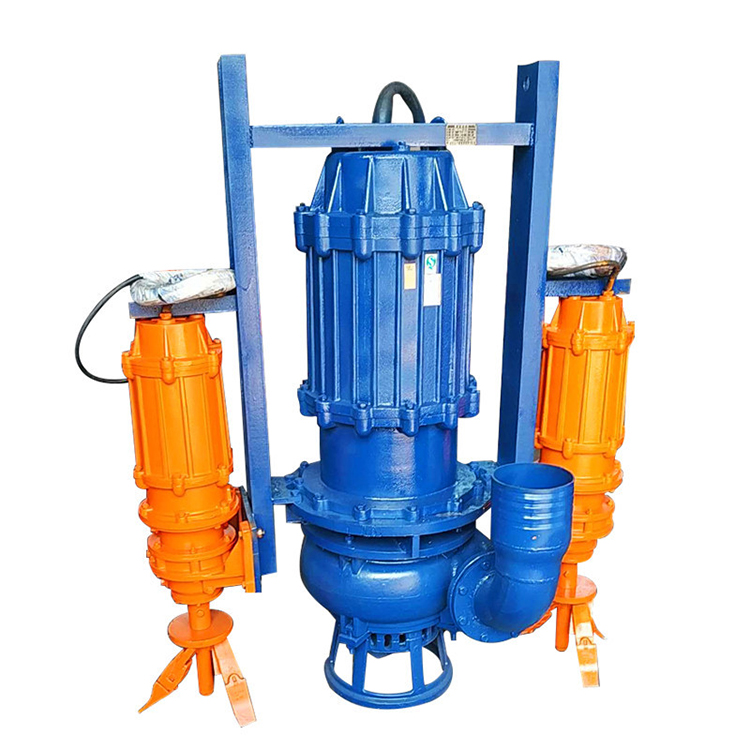

ZJQ Submersible Slurry Pump

ZJQ series slurry pumps advantages are as follows:
1. Long service life: comprehensive optimization and innovative design have been carried out in hydraulic models, sealing technology, mechanical structures, protection and control, etc.
2. Good passing ability: max passing particles size is 80% of the minimum flow channel size of the pump.
3. The site is cleaner: Submerging the pump underwater does not require the construction of a responsible ground pump room and fixed devices.
4. High flow rate capacity: can be reached 2333m3/h.
5. Comprehensive performance is good, high head: long distance and high head transportion, single set head can reach to max 134m.
6. Diameter size:outlet size from 40mm to 300mm.
7. High corrosion, abrasion resistance widely material optional: metal flow parts including: (Cr27Mo),(Cr30MoNi),(Cr30MoNiCu) material etc. PH value 4-10.
8. Widely application: all slurry, mud and bad corrosive medium can be transported, widely used in industry of mining, electrical power, metallurgy,coal, construction etc.
9. Driving engine of motor.
10. Our company passed ISO certificate and all of our pumps pass CE certificate, comply with international standards.
11. Energy saving and cost reducing: pump itself water conservancy design advanced and mature. In the mode of traditional direct start increasing soft start and frequency start methods, it make sure energy saving and protection devices; Adjust the speed by soft connection mode in order to achieve the maximum utilization and tower results of work.
12. Easy operation, lower noise and vibration.

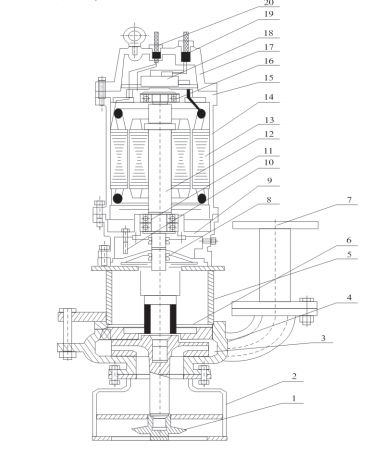

ZJQ series slurry pumps construction:

1. Mixing wheel
2. Base filter screen
3. Impeller
4. Pump body
5. Support
6. Water outlet pipe
7. Guard board
8. Mechanical seal
9. Oil chamber
10. Oil water probe
11. Bearings
12. Shaft (rotor)
13. Stator
14. Motor casing
15. Upper shaft seat
16. Bearings
17. Motor cover
18. Junction box
19. Motor wiring
20. Signal line

Product Parameters

The following performance parameter table only shows part of the products. For details, please consult our company's account manager, so that you can choose products for you more professionally.
