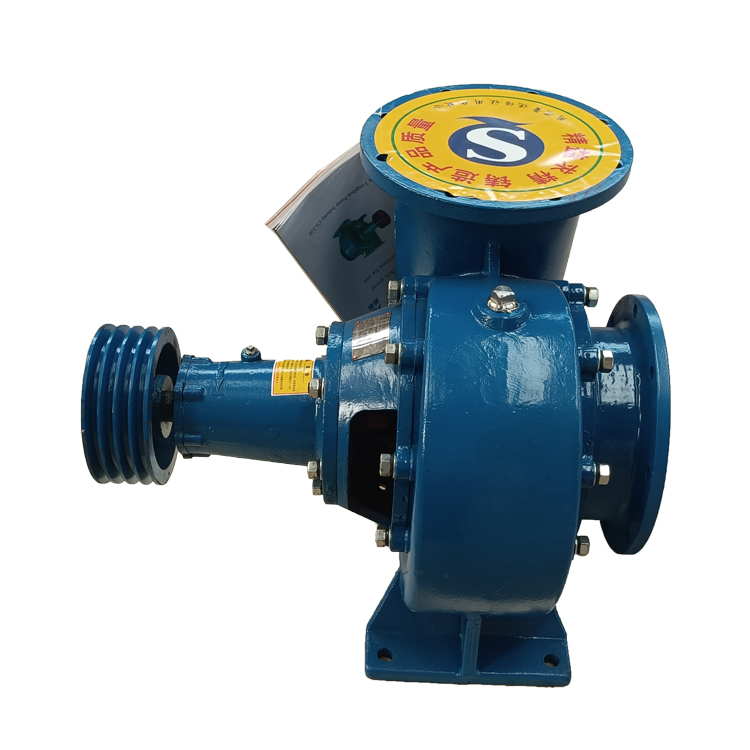

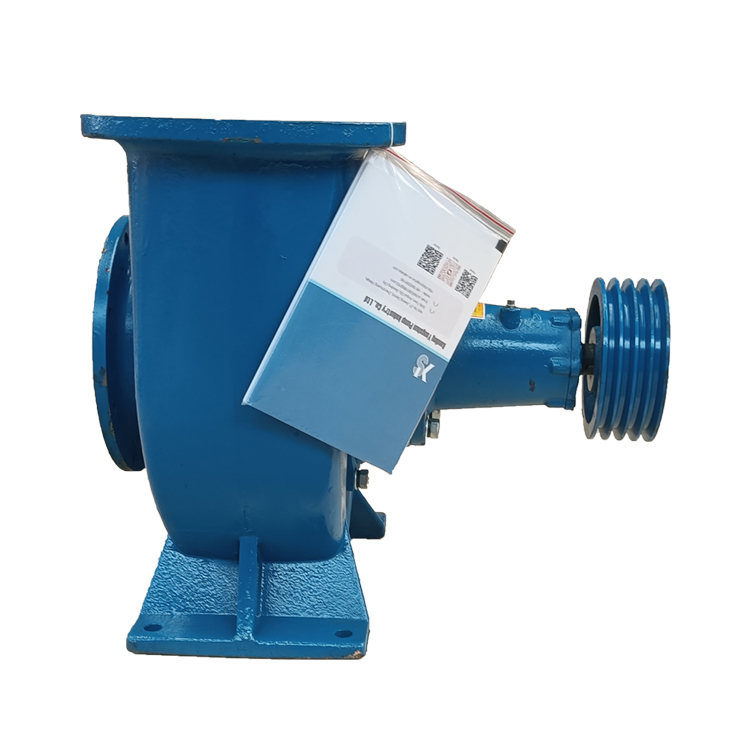

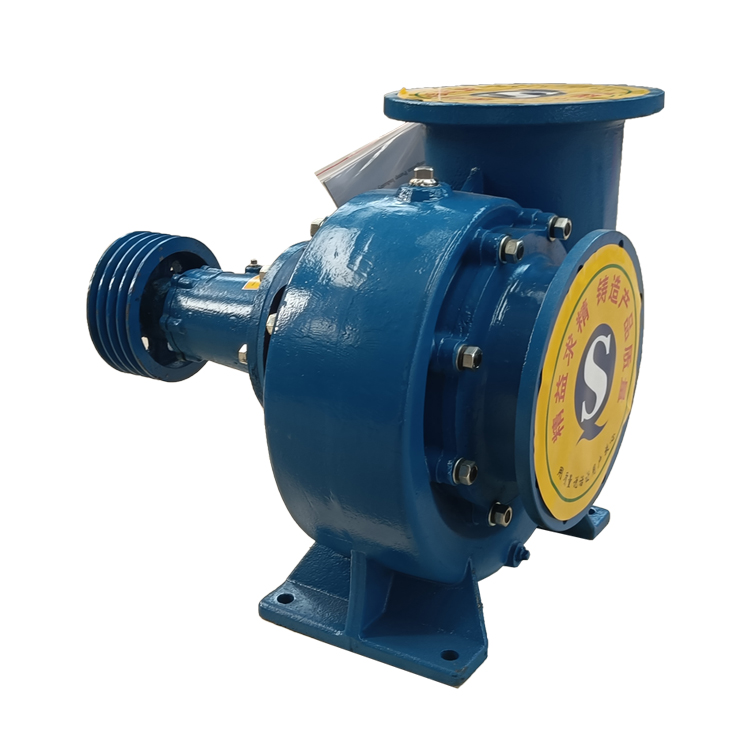

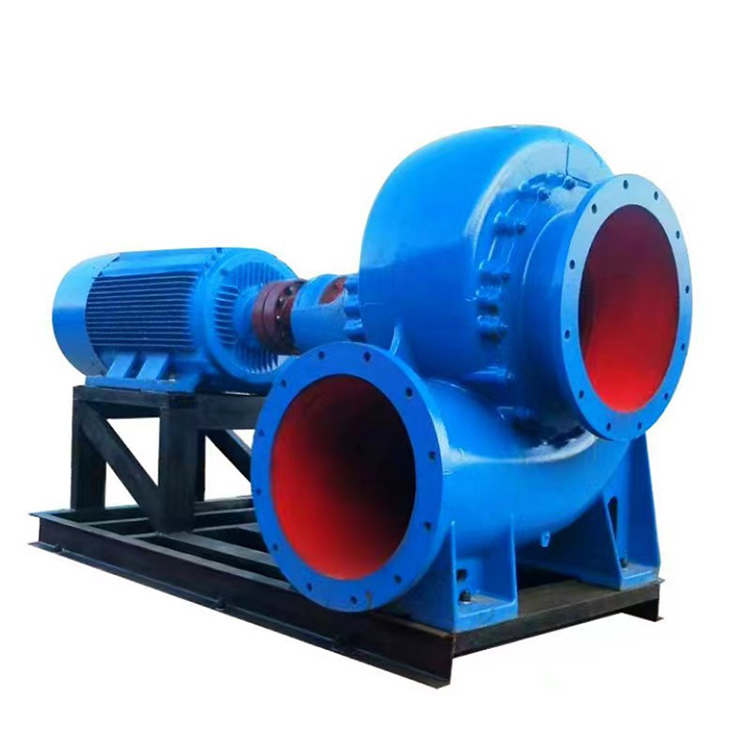

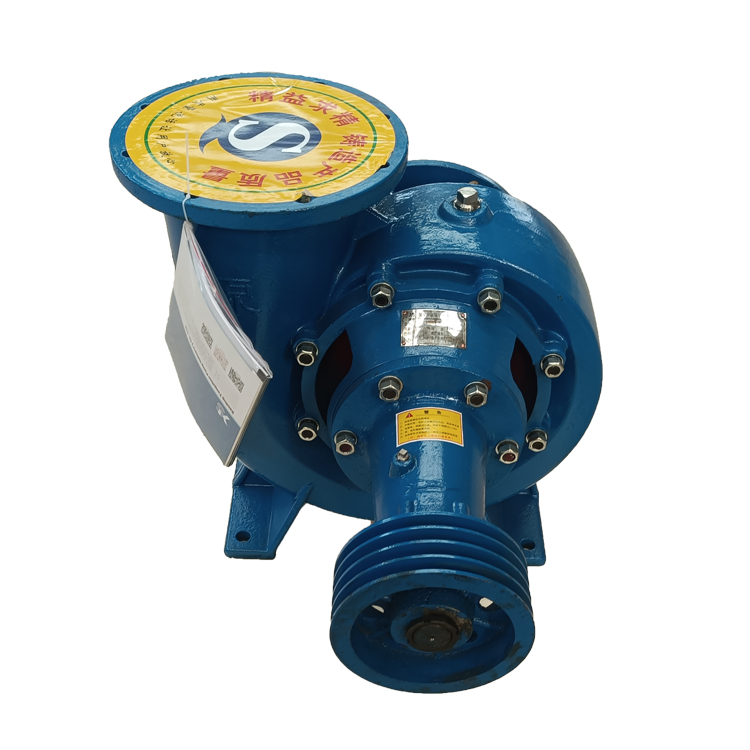

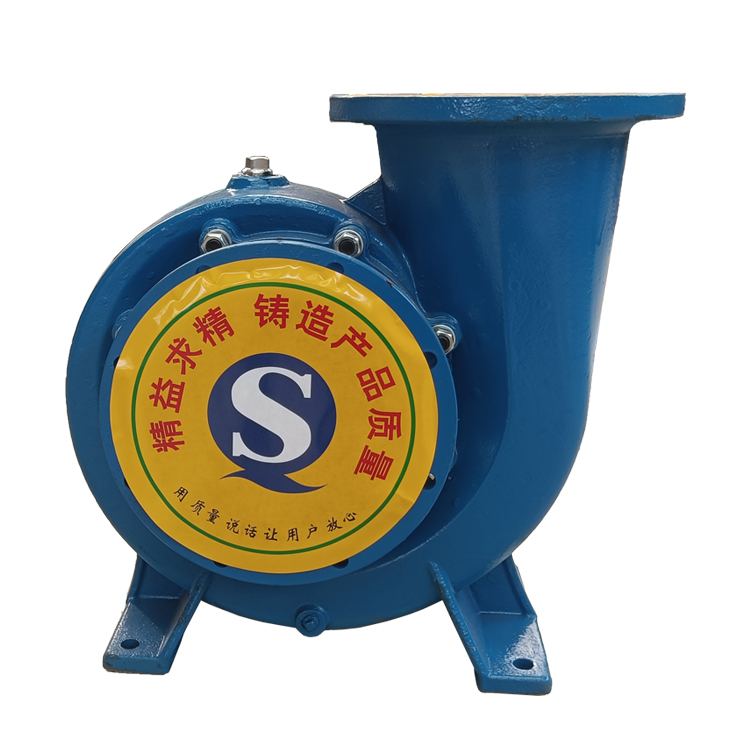

HW Mixed Flow Pump

HW series mixed flow pumps advantages are as follows:
1. It can transport both clean water and sewage.
2. Simple structure, reliable use, convenient installation and maintenance, and high efficiency, small size, and light weight.
3. High flow rate capacity: can be reached 9000m3/h.
4. Diameter size:outlet size from 100mm to 800mm.
5. Widely material optional: cast iron, stainless steel etc or custom materials.
6. Widely application: both clean water and sewage can be transported, widely used in industry and urban water supply and drainage, agricultural drainage and irrigation etc.
7. Driving engine of motor and diesel are available.
8. Kinds of driving method satisfy different space need on site: DC, CL, CR, CV, ZV, HC.
9. Our company passed ISO certificate and all of our pumps pass CE certificate, comply with international standards.
10. Energy saving and cost reducing: pump itself water conservancy design advanced and mature. In the mode of traditional direct start increasing soft start and frequency start methods, it make sure energy saving and protection devices; Adjust the speed by soft connection mode in order to achieve the maximum utilization and tower results of work.
11. Easy operation, lower noise and vibration.

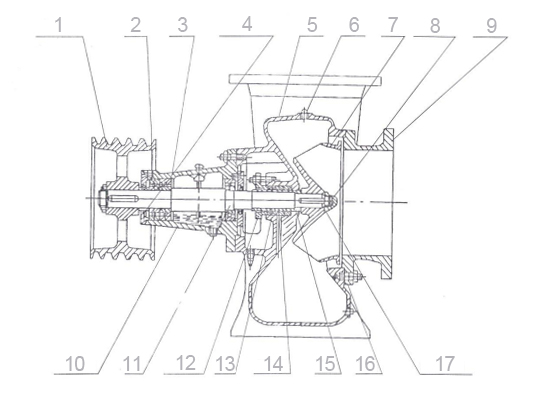

HW series 100-350HW mixed flow pumps construction:
(The 350HW-8 pump has two types of water outlet: upward and horizontal)

1. Belt pulley
2. Gear sleeve
3. Bearings
4. Bearing body end cover
5. Pump body
6. Plug
7. Impeller
8. Impeller nut
9. Pump cover
10. Bearing body
11. Shaft
12. Packing gland
13. Filler
14. Packing ring
15. Shaft sleeve
16. Paper pad
17. Impeller nut gasket

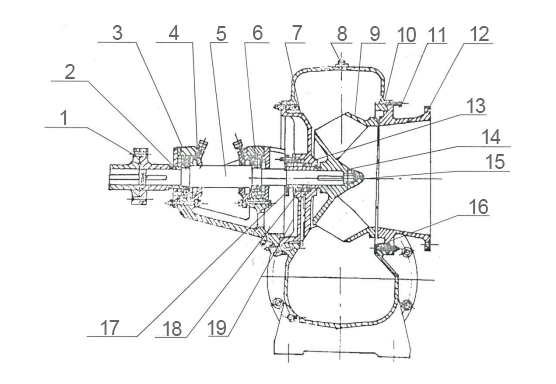

HW series 400-800HW mixed flow pumps construction:
(The water outlet direction of 650HW-8, -7, -10 pumps is opposite to the diagram: when looking at the pump inlet, the impeller rotates clockwise)

1. Coupling
2. Gear sleeve
3. Bearing frame
4. Bearing end cover
5. Axis
6. Bearings
7. Tail cover
8. Plug
9. Impeller
10. Pump body
11. Screws
12. Pump cover
13. Shaft sleeve
14. Impeller nut gasket
15. Impeller nut
16. Paper pad
17. Packing gland
18. Packing ring
19. Filler

Product Parameters

The following performance parameter table only shows part of the products. For details, please consult our company's account manager, so that you can choose products for you more professionally.

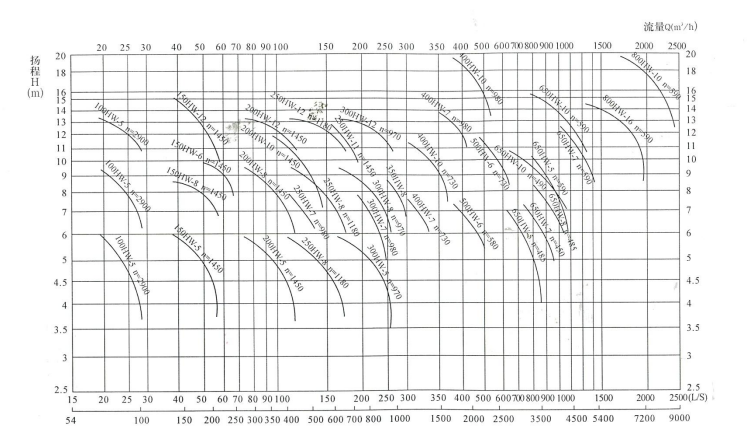

Performance Chart:
