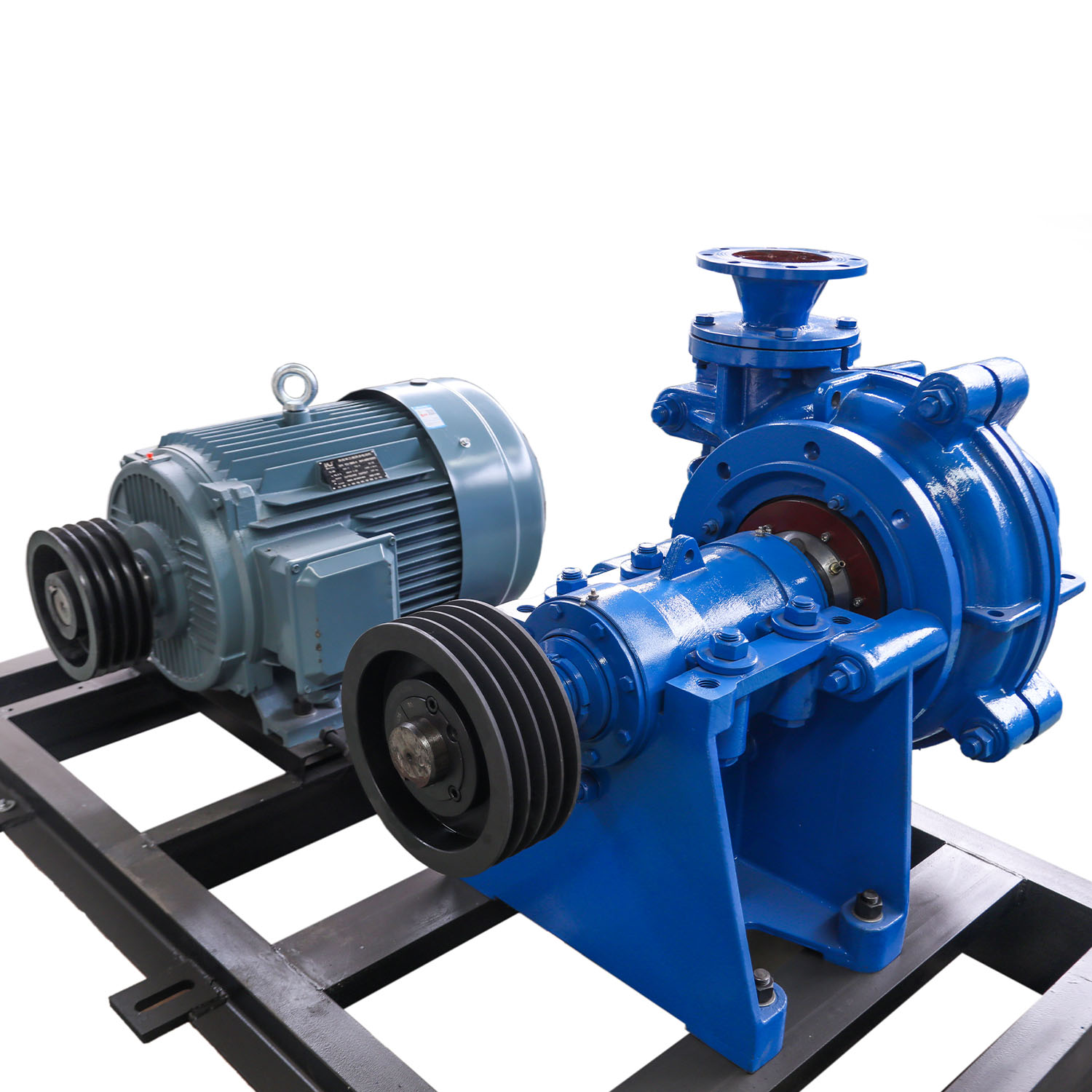

AH series slurry pumps advantages are as follows:
1. High concentration, volume concentration reach to 60%, weight concentration reach to 70%.
2. Comprehensive performance is good, high head: long distance and high head transportion, single set head can reach to max 118m, and can be used in series to satisfy much higher head requirements.
3. High flow rate capacity: can be reached 5400m3/h.
4. Good passing ability:gravel pump max passing particles size is 380mm.
5. Diameter size:outlet size from 1" to 18".
6. High corrosion, abrasion resistance widely material optional: metal flow parts including: (Cr27Mo),(Cr30MoNi),(Cr30MoNiCu) and rubber material etc. PH value 1.0-14.
7. Widely application: all slurry, mud and bad corrosive medium can be transported, widely used in industry of mining, electrical power, metallurgy,coal, construction etc.
8. Driving engine of motor and diesel are available.

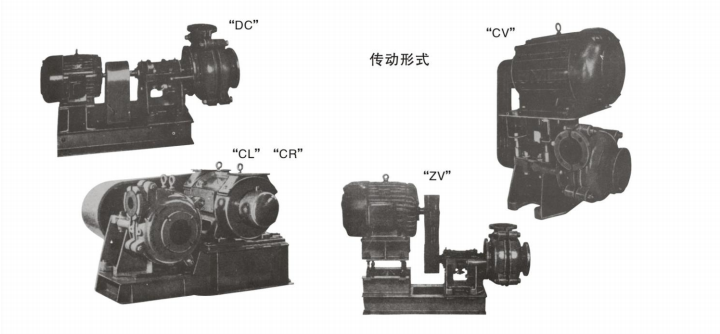

9. Kinds of driving method satisfy different space need on site: DC, CL, CR, CV, ZV.
10. Our company passed ISO certificate and all of our pumps pass CE certificate, comply with international standards.
11. Energy saving and cost reducing: pump itself water conservancy design advanced and mature. In the mode of traditional direct start increasing soft start and frequency start methods, it make sure energy saving and protection devices; Adjust the speed by soft connection mode in order to achieve the maximum utilization and tower results of work.
12. Easy operation, lower noise and vibration.

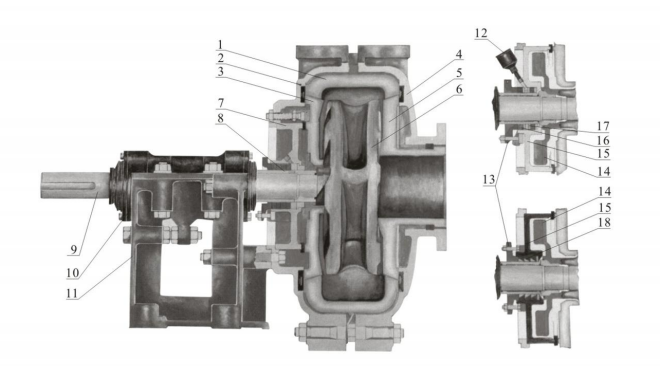

AH series slurry pumps construction:
1. Sheath
2. Pump body
3. Rear guard board
4. Pump cover
5. Front guard board
6. Impeller
7. Stuffing box
8. Shaft sleeve
9. Axis
10. Bearing body
11. Bracket
12. Oil cup
13. Split packing gland
14. Auxiliary impeller
15. Pressure reducing cover
16. Filler
17. Water seal ring
18. Lip sealing ring

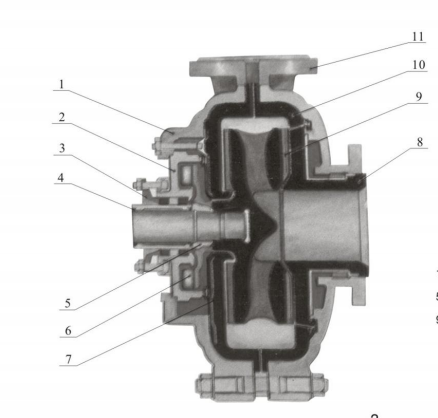

Structural diagram of rubber lined pump head:
1. Pump body
2. Pressure reducing cover
3. Packing gland
4. Shaft "O" ring
5. Positioning sleeve
6. Auxiliary impeller
7. Pump body sheath
8. Suction sheath
9. Impeller
10. Pump cover sheath
11. Pump cover
Product Parameters
The following performance parameter table only shows part of the products. For details, please consult our company's account manager, so that you can choose products for you more professionally.
Model | Motor Power (kw) | Clear Water Performance | Impeller | ||||||
Capacity | Head | Speed | Efficiency | NPSH | Number of Vanes | Impeller diameter | |||
m³/h | L/S | ||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
18/16-AHH | 560-1200 | 2160-5040 | 600-1400 | 8-66 | 200-500 | 80 | 4.5-9 | 5 | 1245 |
20/18-AHH |
|
|
|
|
|
|
|
|
|

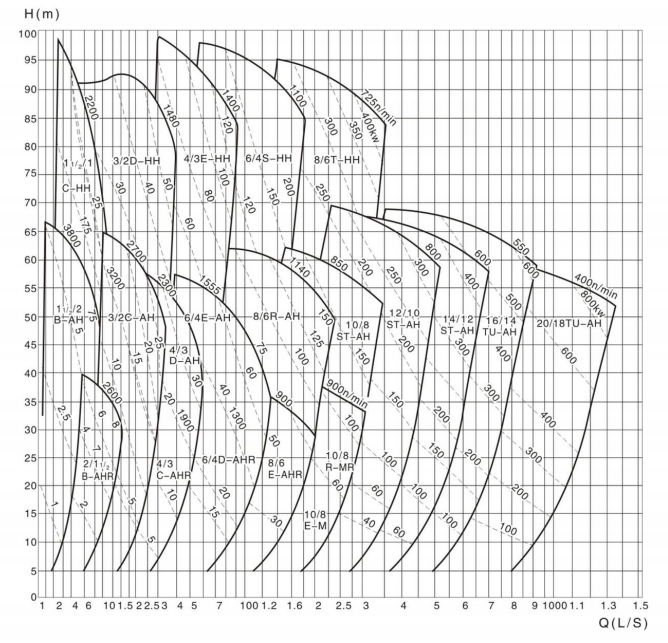

Performance Chart:
