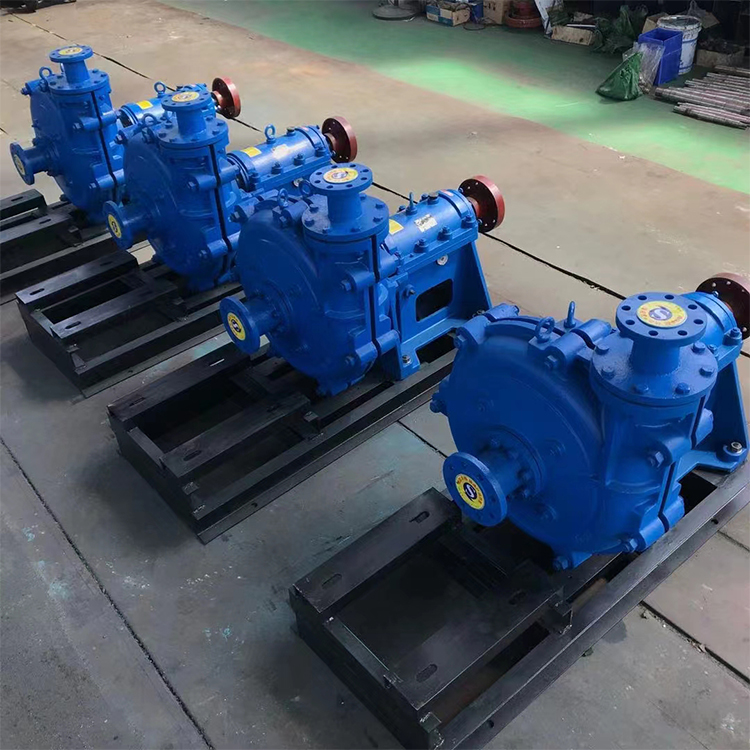

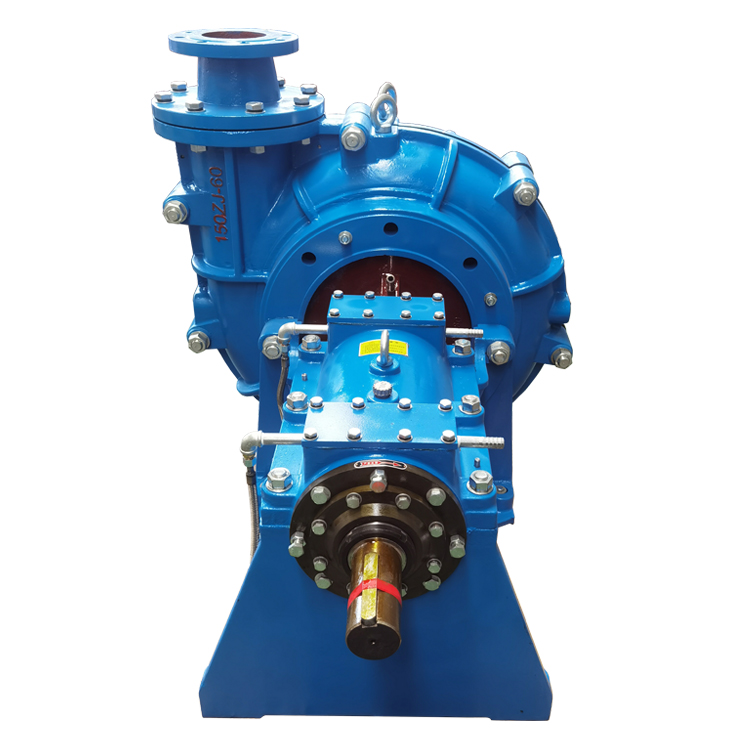

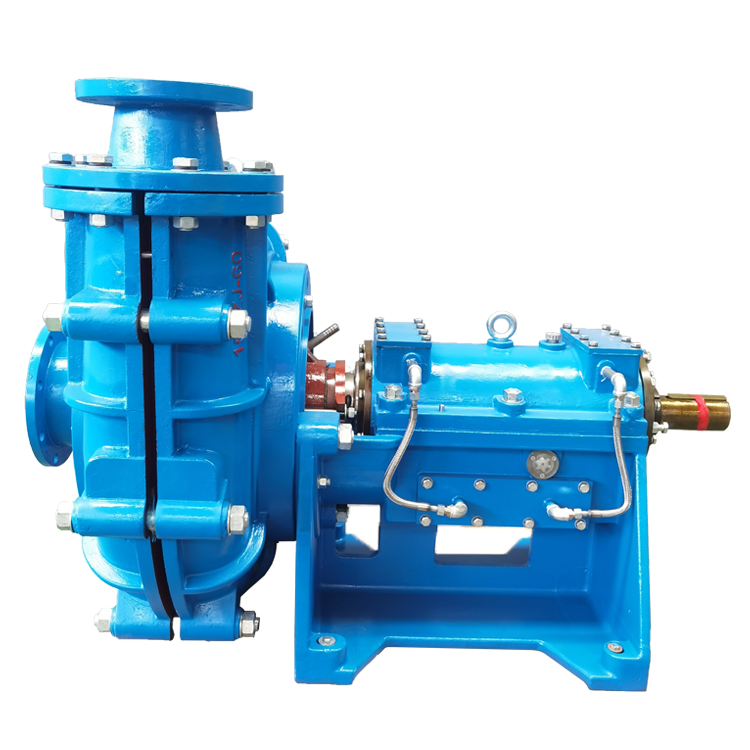

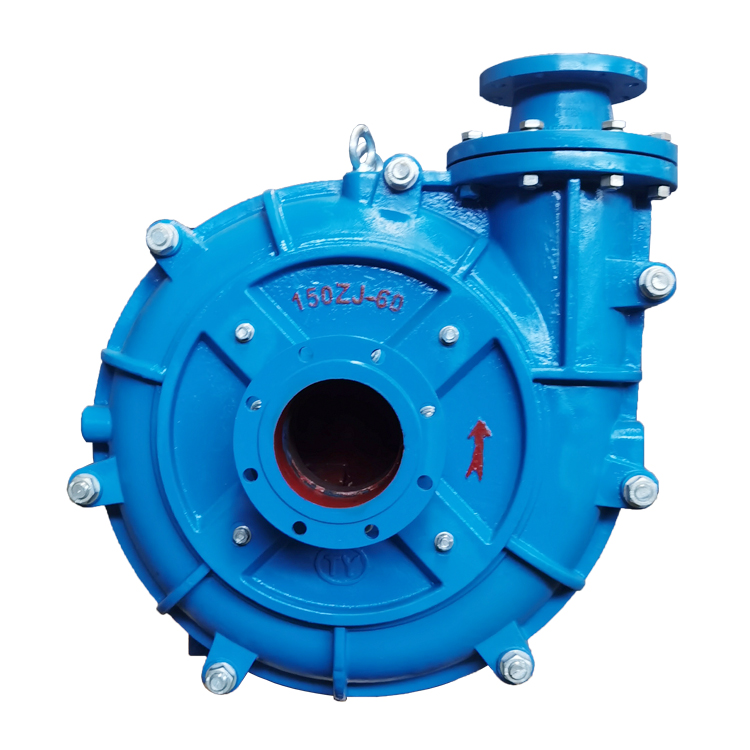

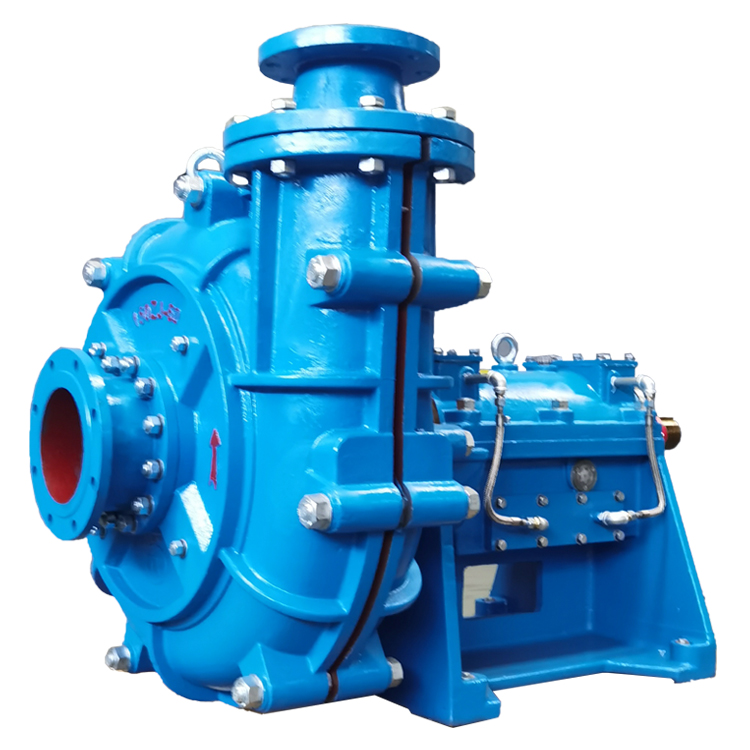

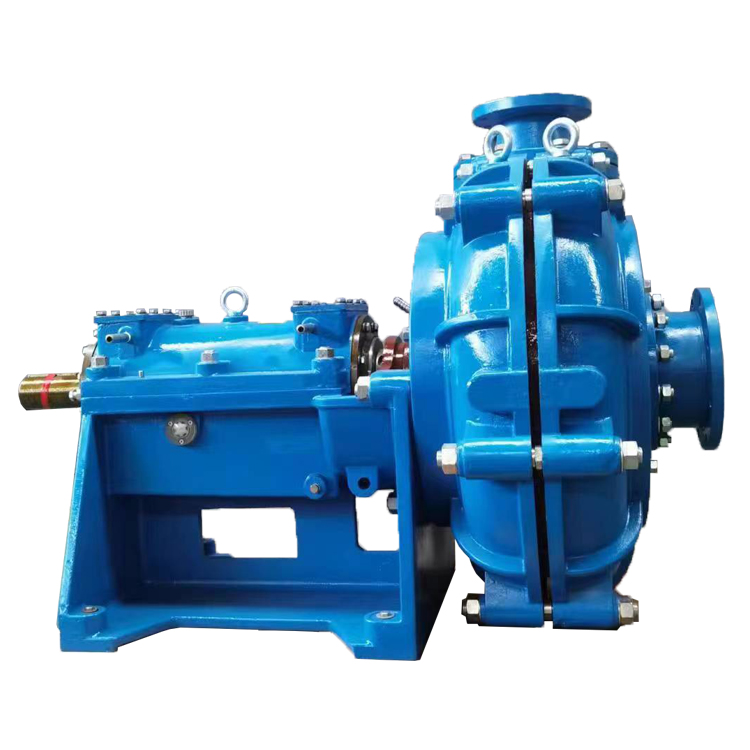

ZJ Horizontal Slurry Pump

ZJ series slurry pumps advantages are as follows:
1. High concentration, the concentration of solid-liquid mixture is 45% for mortar and 60% for mineral slurry.
2. Comprehensive performance is good, high head: long distance and high head transportion, single set head can reach to max 133.7m, and can be used in series to satisfy much higher head requirements.
3. High flow rate capacity: can be reached 2333m3/h.
4. Good passing ability:gravel pump max passing particles size is 96mm.
5. Diameter size:outlet size from 40mm to 300mm.
6. High corrosion, abrasion resistance widely material optional: metal flow parts including: (Cr27Mo),(Cr30MoNi),(Cr30MoNiCu) material etc. PH value 1.0-14.
7. Widely application: all slurry, mud and bad corrosive medium can be transported, widely used in industry of mining, electrical power, metallurgy,coal, construction etc.
8. Driving engine of motor and diesel are available.

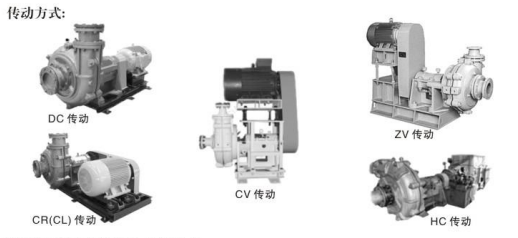

9. Kinds of driving method satisfy different space need on site: DC, CL, CR, CV, ZV, HC.

10. Our company passed ISO certificate and all of our pumps pass CE certificate, comply with international standards.
11. Energy saving and cost reducing: pump itself water conservancy design advanced and mature. In the mode of traditional direct start increasing soft start and frequency start methods, it make sure energy saving and protection devices; Adjust the speed by soft connection mode in order to achieve the maximum utilization and tower results of work.
12. Easy operation, lower noise and vibration.

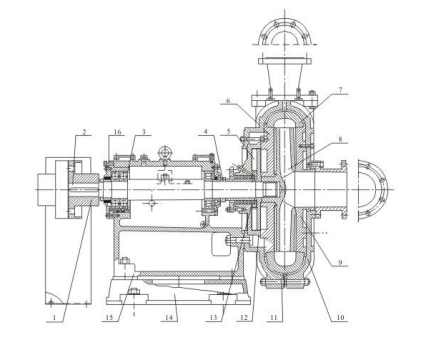

ZJ series slurry pumps construction:

1. Coupling
2. Shaft
3. Bearing box
4. Remove the ring
5. Auxiliary impeller
6. Rear guard board
7. Spiral case
8. Impeller
9. Front guard board
10. Front pump housing
11. Rear pump housing
12. Stuffing box
13. Water seal ring
14. Base
15. Bracket
16. Adjusting screw

Product Parameters

The following performance parameter table only shows part of the products. For details, please consult our company's account manager, so that you can choose products for you more professionally.

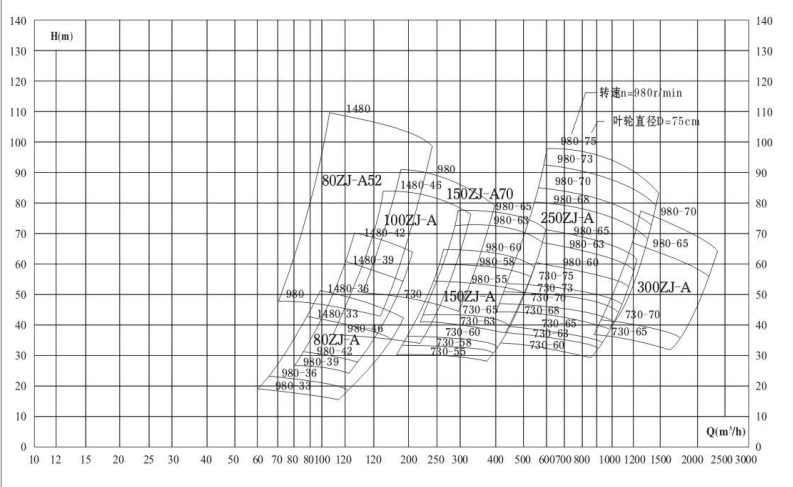

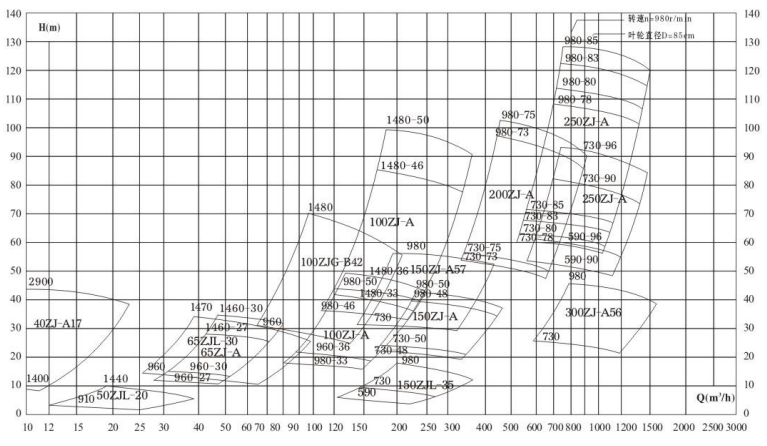

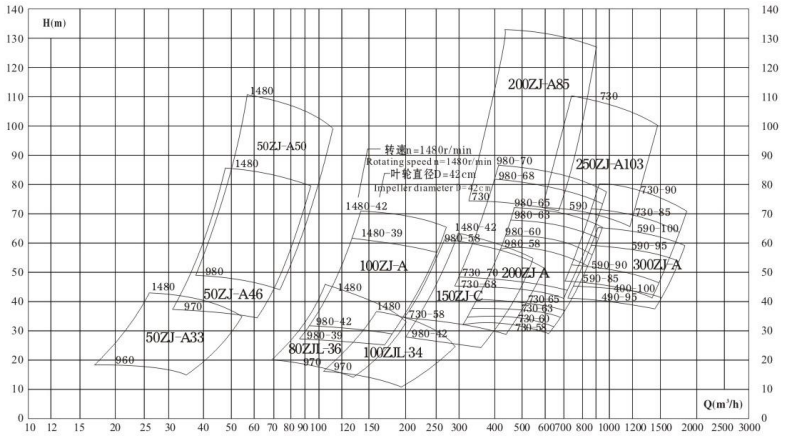

Performance Chart:
