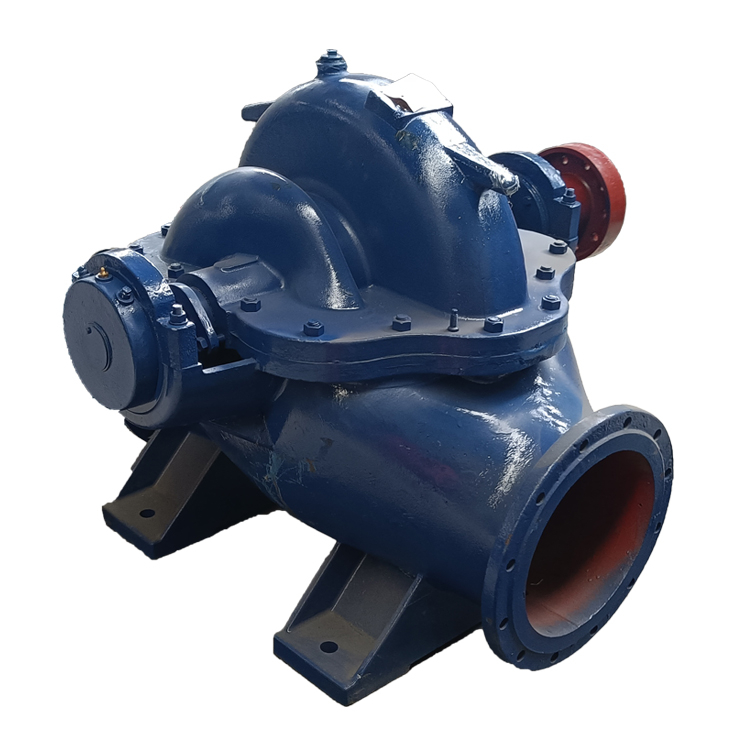

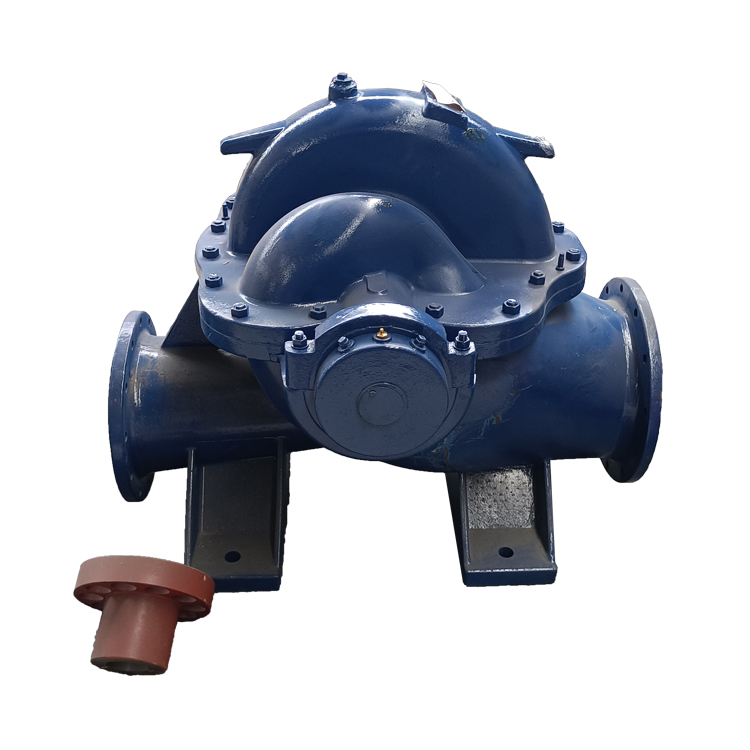

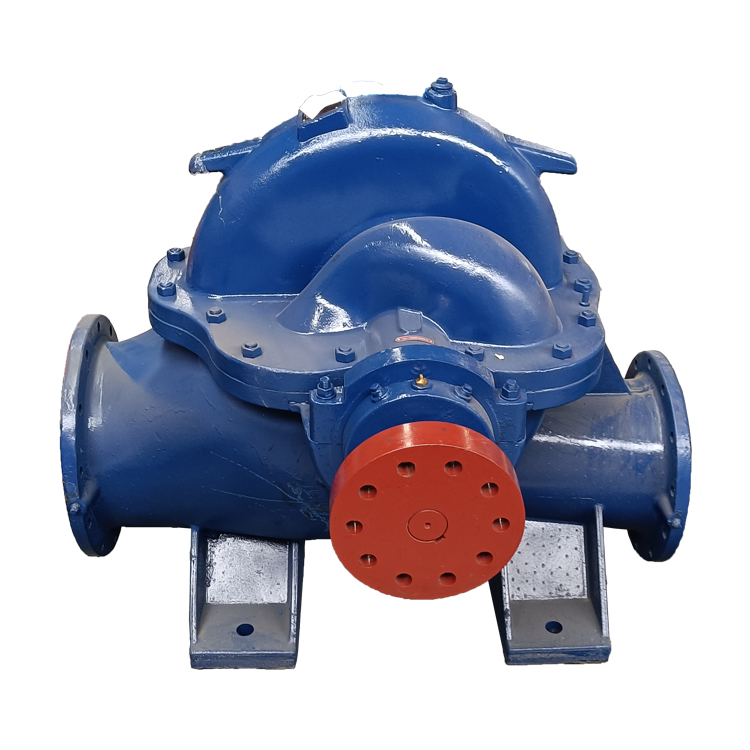

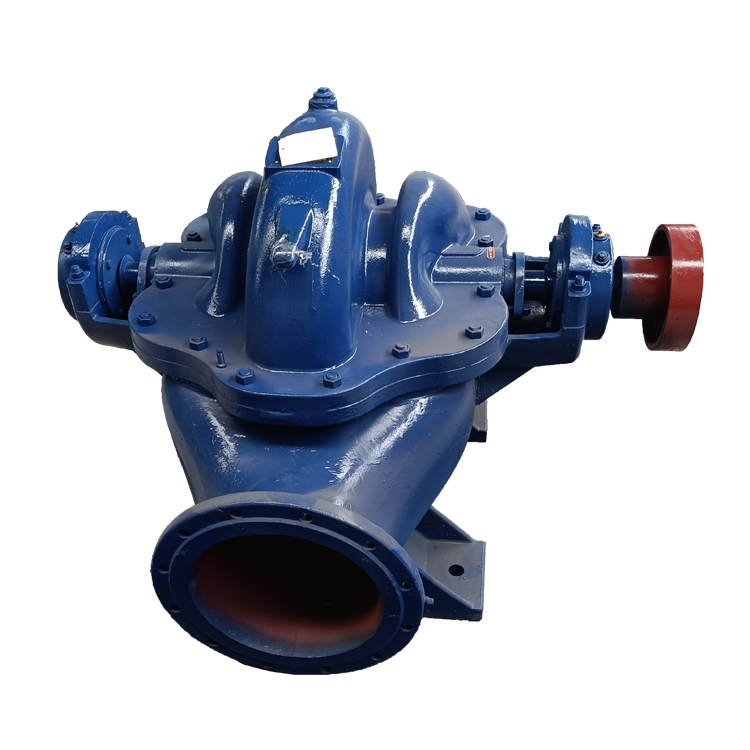

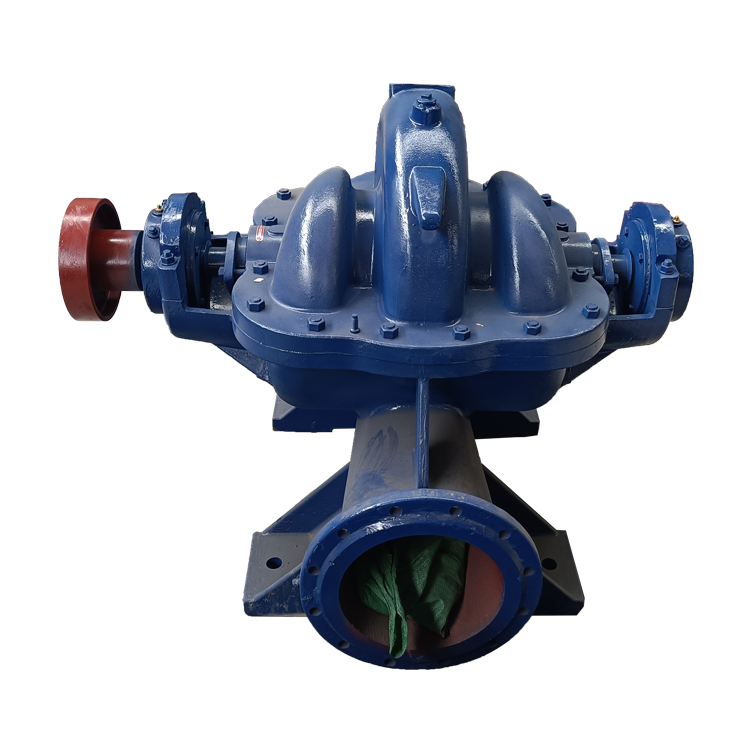

S SH Double Suction Pump

S SH series centrifugal pumps advantages are as follows:
1. Transportable muddy water: By changing the materials of the impeller, sealing ring, and shaft sleeve, muddy water containing sediment can be pumped.
2. Comprehensive performance is good, high head: long distance and high head transportion, single set head can reach to max 140m.
3. High flow rate capacity: can be reached 12500m3/h.
4. Suitable for high temperatures: If cooling water is supplied to both ends of the bearings, the medium temperature can reach 130 ºC.
5. Diameter size:outlet size from 100mm to 500mm.
6. Wide range of available materials: cast iron, stainless steel, etc.
7. Shaft seal: The shaft seal of S SH centrifugal pumps generally uses soft packing. If there are special order requirements, mechanical seals can also be installed.
8. Widely application: all clear water, water like liquids and muddy water can be transported, widely used in factories, mines, urban water supply, power stations, large-scale water conservancy projects, farmland irrigation and drainage etc. The 48SH-22 large pump can also be used as a circulating pump in thermal power plants.
9. Driving engine of motor and diesel are available.
10. Kinds of driving method satisfy different space need on site: DC, CL, CR, CV, ZV, HC.
11. Our company passed ISO certificate and all of our pumps pass CE certificate, comply with international standards.
12. Energy saving and cost reducing: pump itself water conservancy design advanced and mature. In the mode of traditional direct start increasing soft start and frequency start methods, it make sure energy saving and protection devices; Adjust the speed by soft connection mode in order to achieve the maximum utilization and tower results of work.
13. Convenient maintenance: The pump cover of the S SH centrifugal pump is fixed to the pump body with double head bolts and conical positioning screws, making it easy to open and inspect all parts inside the water pump. There is no need to disassemble the inlet and outlet pipelines and motors, making maintenance extremely convenient. From the transmission direction, the SH type water pump rotates counterclockwise; The S-type water pump rotates clockwise.
14. Easy operation, lower noise and vibration.

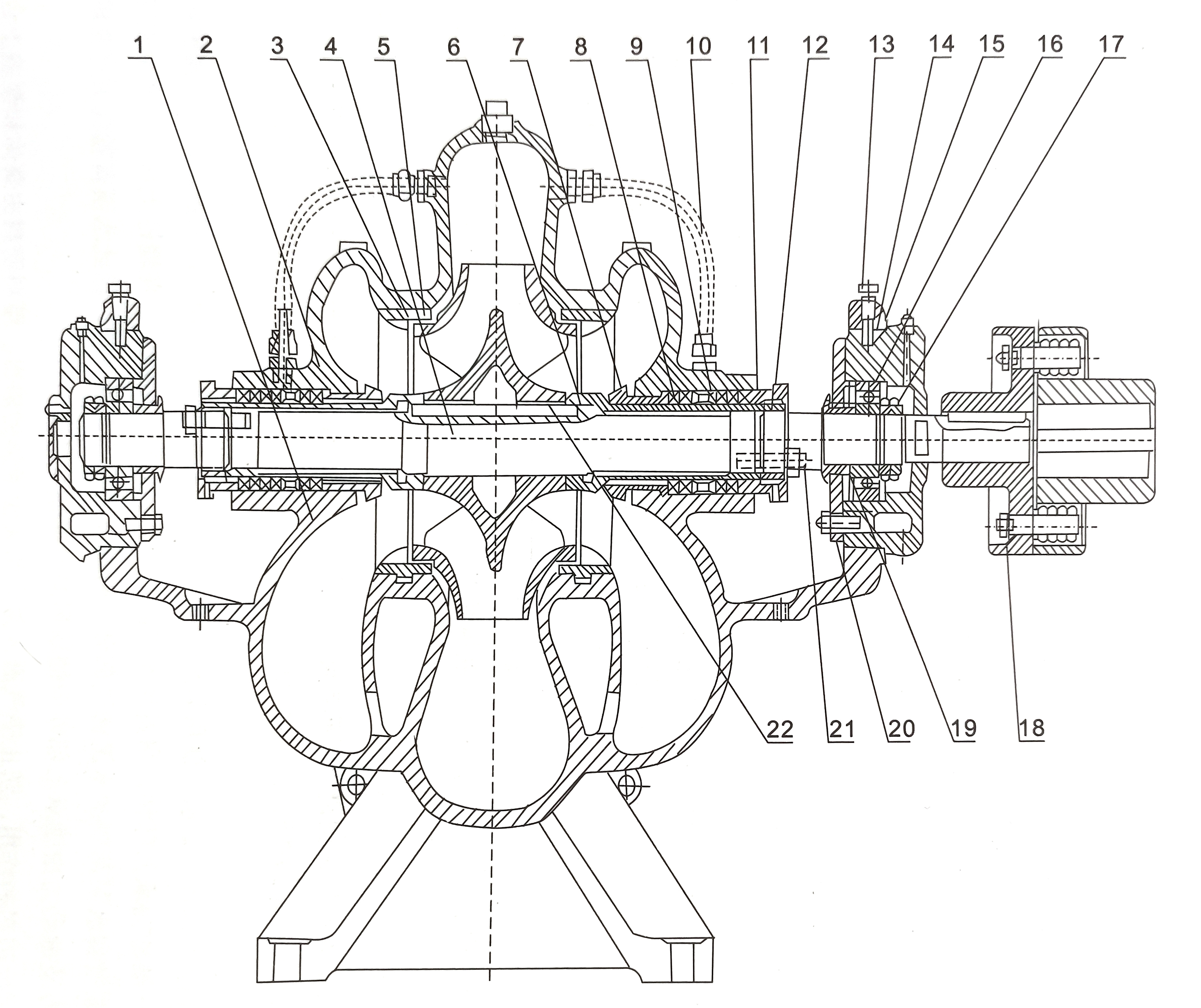

S SH series centrifugal pumps construction:

1. Pump body
2. Pump cover
3. Impeller
4. Shaft
5. Double suction sealing ring
6. Shaft sleeve
7. Filler bag
8. Filler
9. Packing ring
10. Water seal pipe
11. Packing gland
12. Shaft sleeve nut
13. Fixing screws
14. Bearing body
15. Bearing body gland
16. Single row radial ball bearing
17. Round nut
18. Bearing components
19. Bearing retainer
20. Bearing end cover
21. Key
22. Stud bolts

Product Parameters

The following performance parameter table only shows part of the products. For details, please consult our company's account manager, so that you can choose products for you more professionally.
