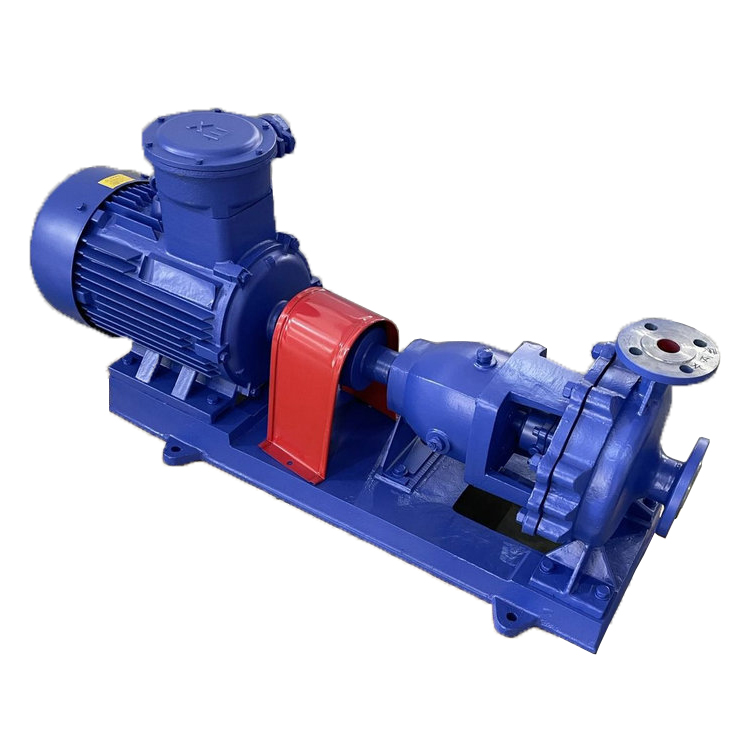

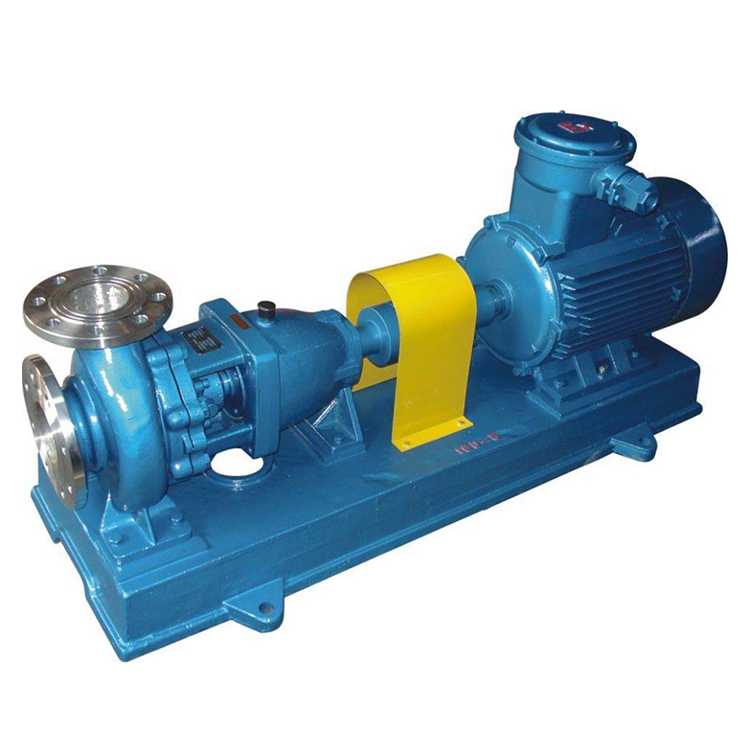

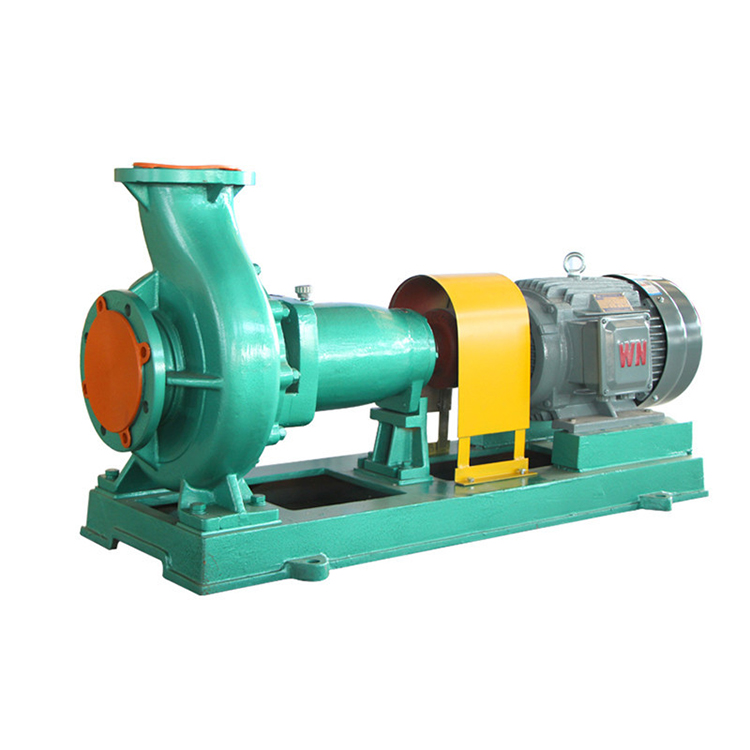

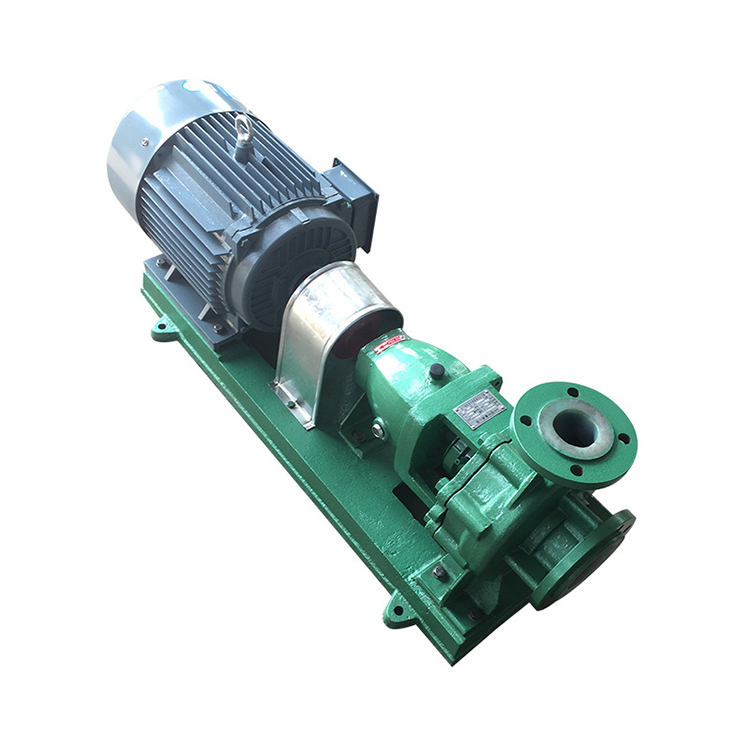

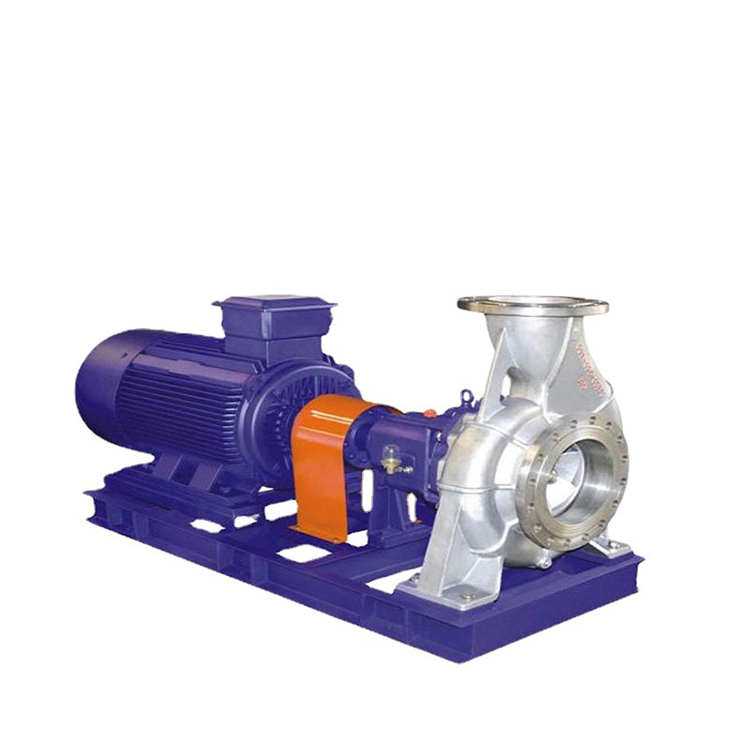

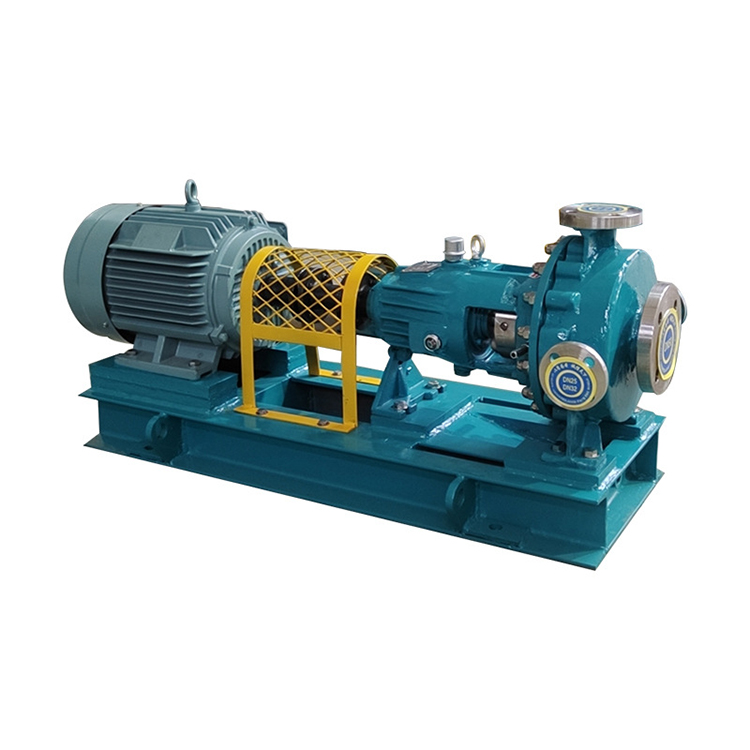

IH Chemical Pump

IH series chemical pumps advantages are as follows:
1. Optional sealing forms: packing seal and mechanical seal.
2. Comprehensive performance is good, high head: long distance and high head transportion, single set head can reach to max 132.5m.
3. High flow rate capacity: can be reached 460m3/h.
4. High temperature resistance: Due to the special material of mechanical seals with high temperature resistance, users are now mostly used as hot water pumps, which are simple, convenient, and practical compared to hot water circulation pumps.
5. Diameter size:outlet size from 32mm to 150mm.
6. High corrosion material : stainless steel material and can be customized. PH value 1.0-14.
7. Widely application: both chemical wastewater and hot water can be transported, widely used in petroleum, chemical, metallurgical, power, papermaking, food, pharmaceutical, synthetic fiber and other sectors.
8. Driving engine of motor and diesel are available.
9. Kinds of driving method satisfy different space need on site: DC, CL, CR, CV, ZV, HC.
10. Our company passed ISO certificate and all of our pumps pass CE certificate, comply with international standards.
11. Energy saving and cost reducing: pump itself water conservancy design advanced and mature. In the mode of traditional direct start increasing soft start and frequency start methods, it make sure energy saving and protection devices; Adjust the speed by soft connection mode in order to achieve the maximum utilization and tower results of work.
12. Easy operation, lower noise and vibration.

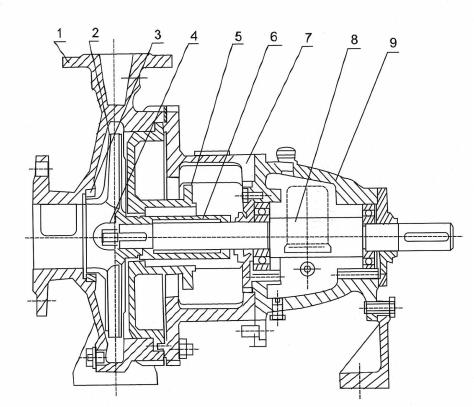

IH series chemical pumps construction:

1. Pump body
2. Impeller
3. Sealing ring
4. Impeller nut
5. Pump cover
6. Sealing components
7. Middle bracket
8. Shaft
9. Suspension components

Product Parameters

The following performance parameter table only shows part of the products. For details, please consult our company's account manager, so that you can choose products for you more professionally.

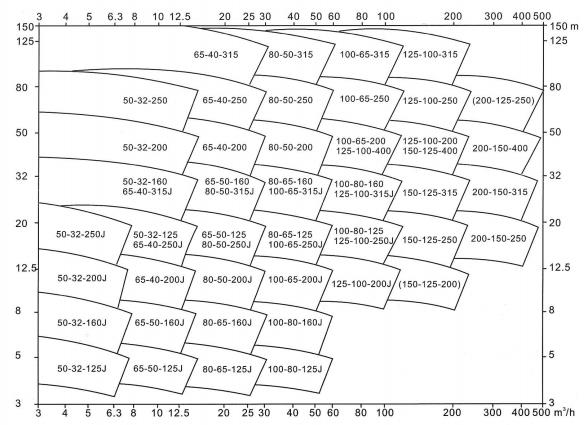

Performance Chart:
