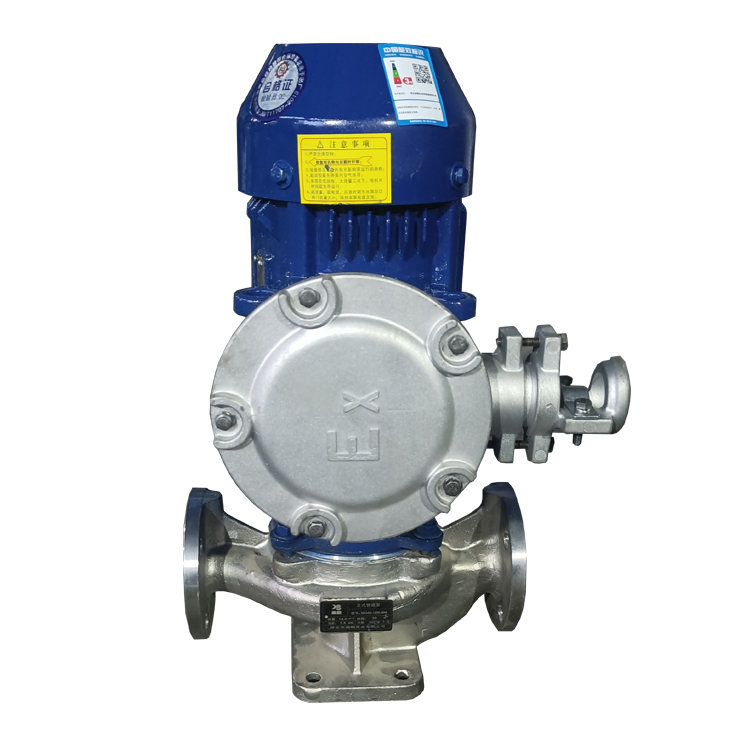

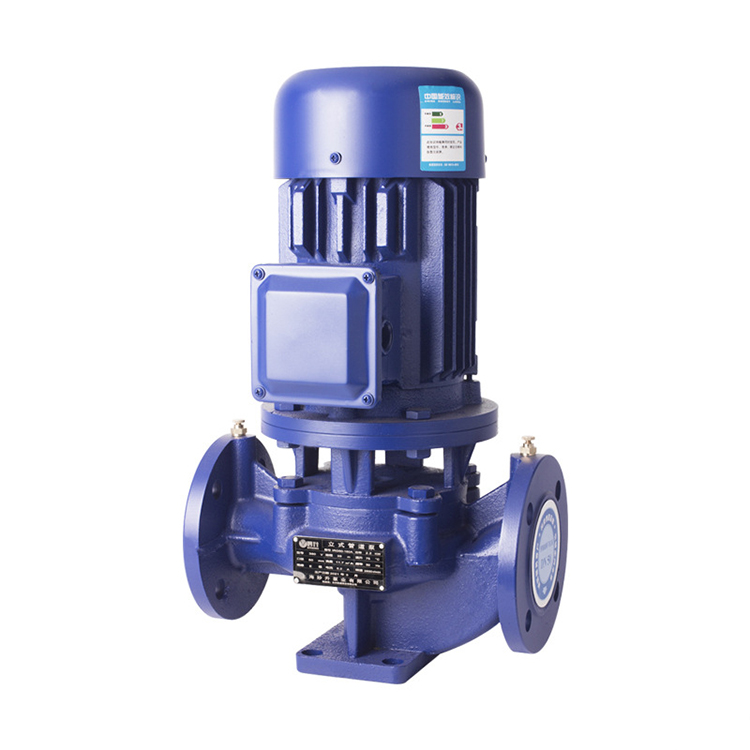

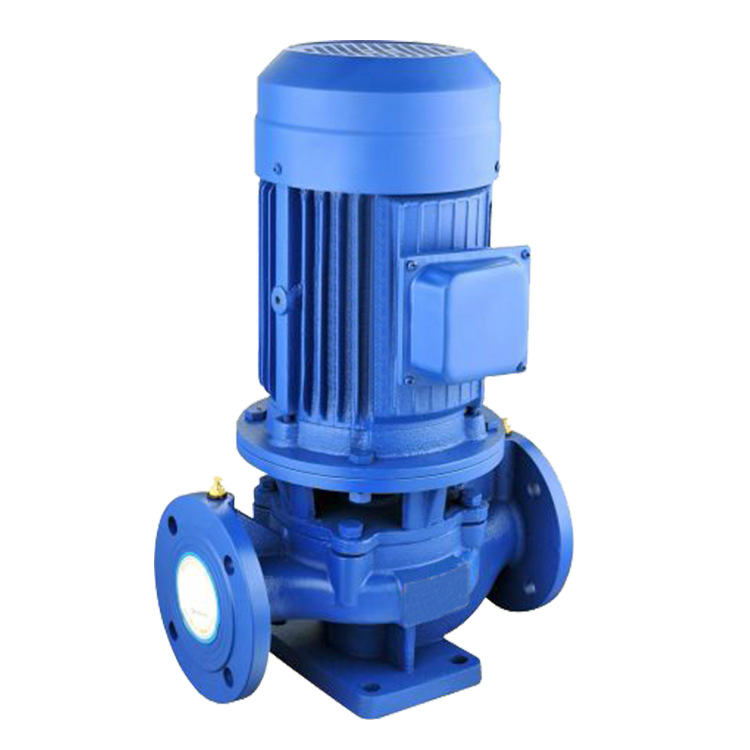

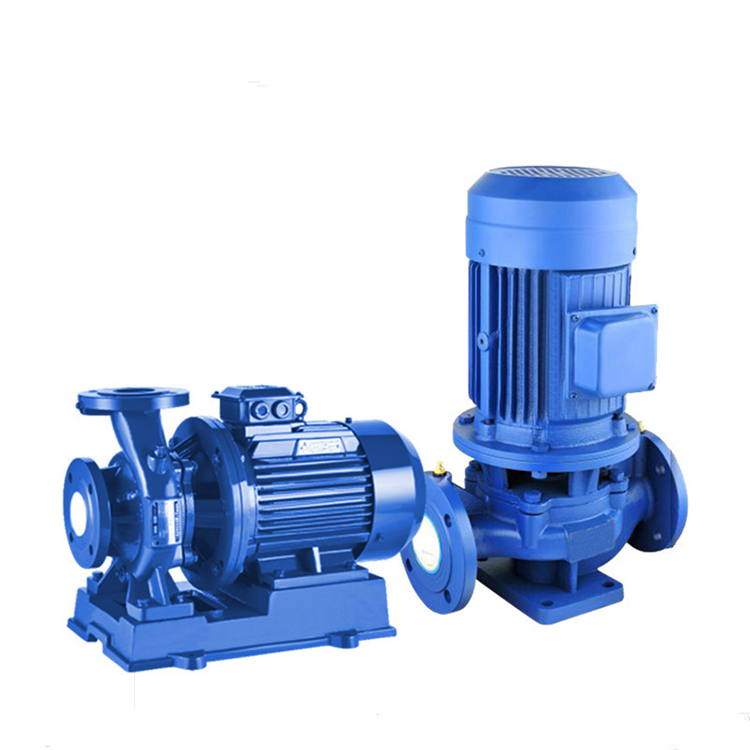

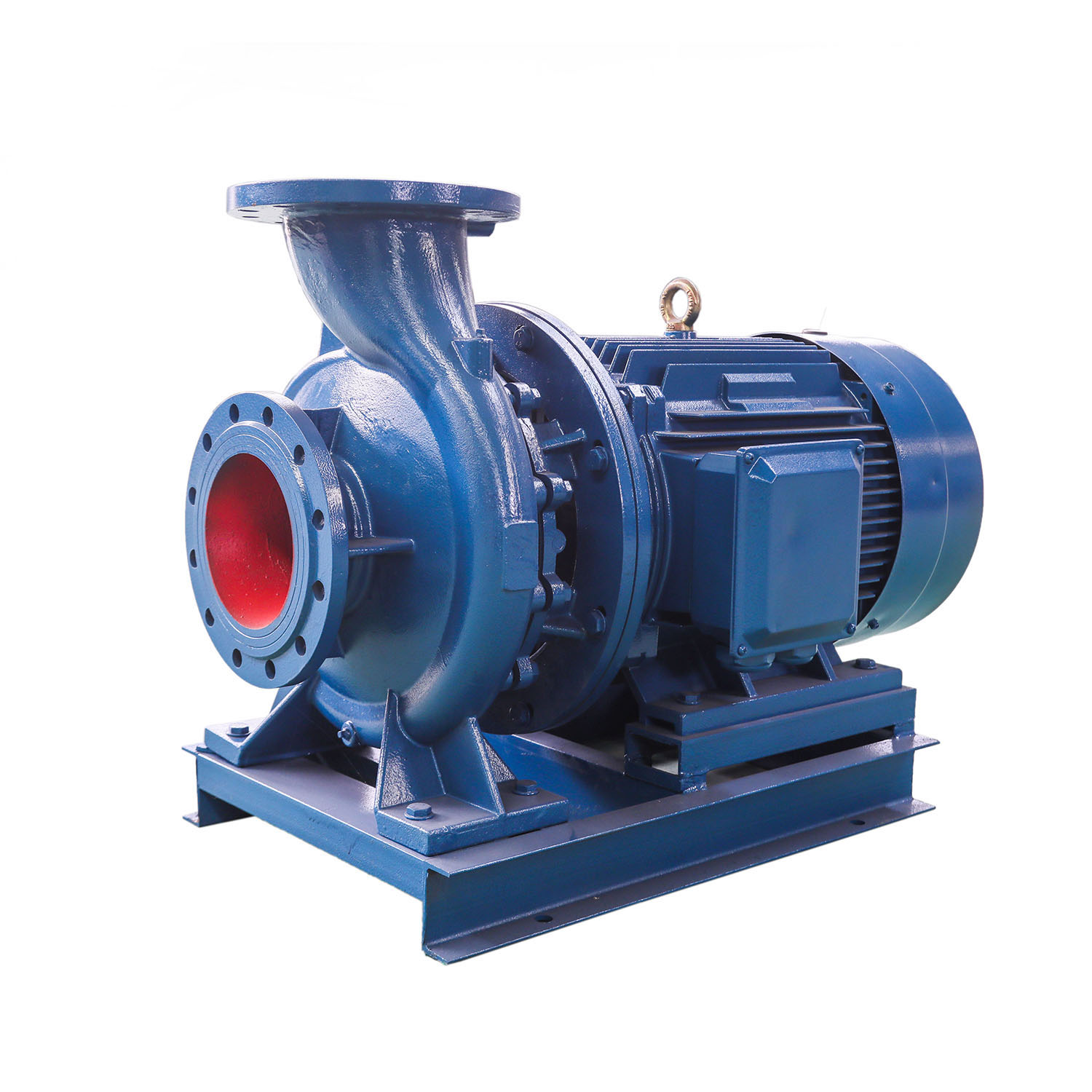

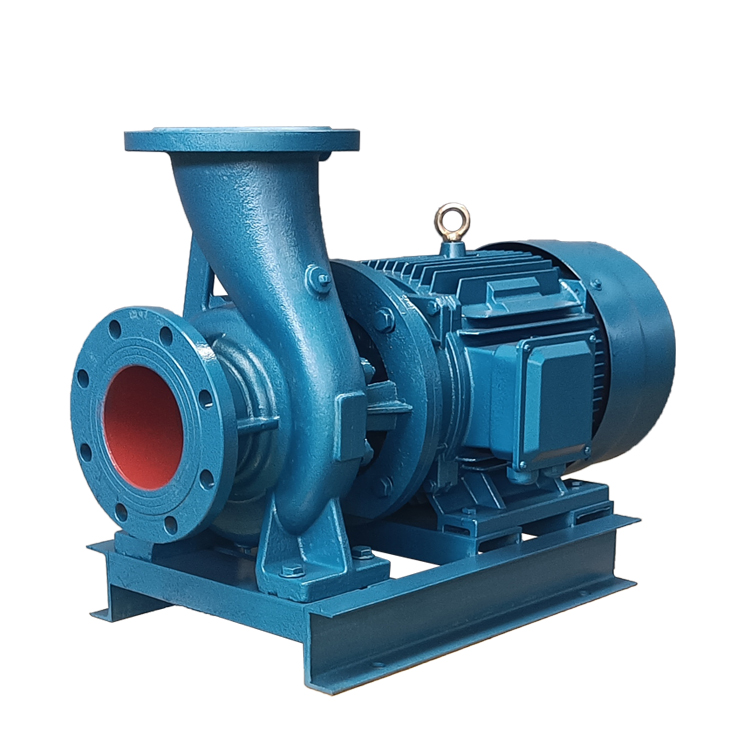

ISW ISG Pipeline Pump

ISW ISG series pipeline pumps advantages are as follows:
1. It can transport both clean water and sewage.
2. Comprehensive performance is good, high head: long distance and high head transportion, single set head can reach to max 160m, series connection method can be used to increase the required head.
3. High flow rate capacity: can be reached 1440m3/h, parallel connection method can be used to increase the required flow rate.
4. Diameter size:outlet size from 15mm to 350mm.
5. Widely material optional: cast iron, cast steel, stainless steel etc or custom materials.
6. Widely application: both clean water and sewage can be transported, widely used in industry and urban water supply and drainage, high rise building pressurization water supply, garden sprinkler irrigation, fire pressurization, long-distance water supply, heating, bathroom cooling and heating water circulation pressurization, and equipment matching, etc.
7. Driving engine of motor and diesel are available.
8. Driving method: direct connection.The pump can be installed vertically, horizontally, and in multiple ways according to on-site usage conditions.
9. Our company passed ISO certificate and all of our pumps pass CE certificate, comply with international standards. The IS series pump adopts the international standard ISO2858 design.
10. Energy saving and cost reducing: pump itself water conservancy design advanced and mature. In the mode of traditional direct start increasing soft start and frequency start methods, it make sure energy saving and protection devices; Adjust the speed by soft connection mode in order to achieve the maximum utilization and tower results of work.
11. The pump has a compact structure, small volume, and beautiful appearance. Its vertical structure has a lower center of gravity and coincides with the center of the pump foot, enhancing the operational stability and lifespan of the pump.
12. Easy installation: With the same inlet and outlet diameters and on the same centerline, it can be directly installed in any part of the pipeline like a valve. The motor with a rain cover can be placed outdoors for use. The pump is equipped with mounting feet for stable installation.
13. Smooth operation, low noise, and high component concentricity: The motor adopts low-noise bearings and is equipped with a non-stop refueling device. The pump impeller has excellent dynamic and static balance, and the operation is vibration free to improve the usage environment.
14. No leakage: The shaft seal adopts a corrosion-resistant hard alloy mechanical seal to solve the problem of severe leakage in the centrifugal pump packing seal, extending its service life. Ensure that the operating site is clean and tidy.
15. Convenient maintenance: There is no need to disassemble or repair the pipeline. Simply remove the pump cover nut and take out the motor and transmission components for maintenance.

ISW series pipeline pumps construction:

1. Motor

2. Pump shaft

3. Water retaining ring
4. Mechanical seal

5. Pressure tap

6. Pump body
7. Air relief cock

8. Impeller

ISG series pipeline pumps construction:

1. Water intake plug

2. Exhaust valve

3. Impeller

4. Mechanical seal5. Bearing

6. Motor

7. Coupling seat

8. Retaining ring
9. Impeller nut

10. Pump body

11. Water drain valve

Product Parameters

The following performance parameter table only shows part of the products. For details, please consult our company's account manager, so that you can choose products for you more professionally.

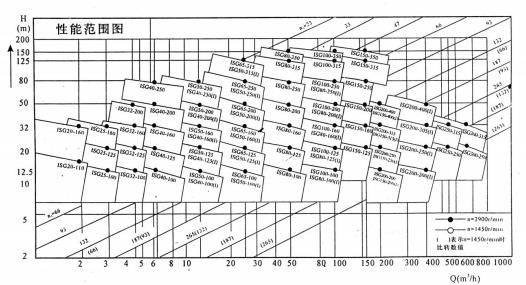

Performance Chart:
