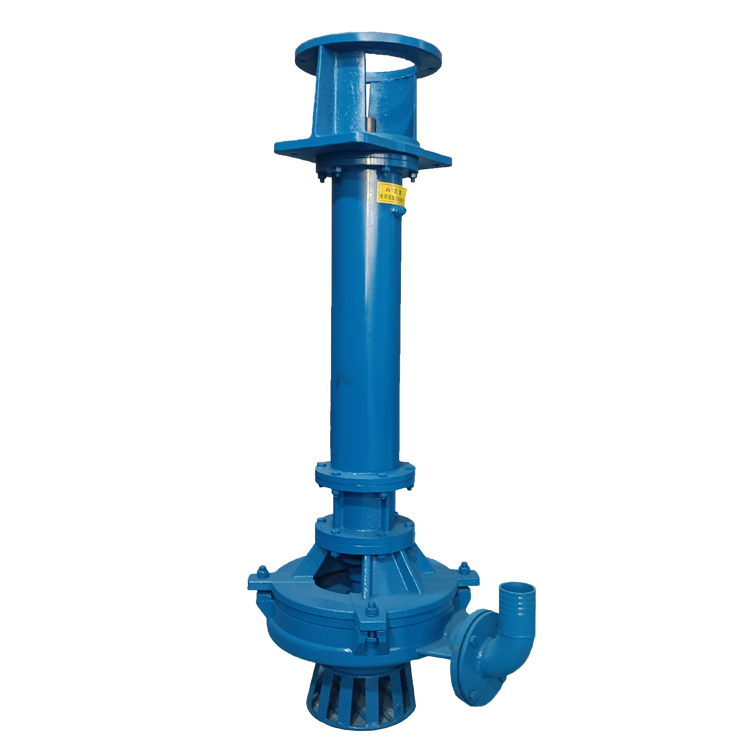

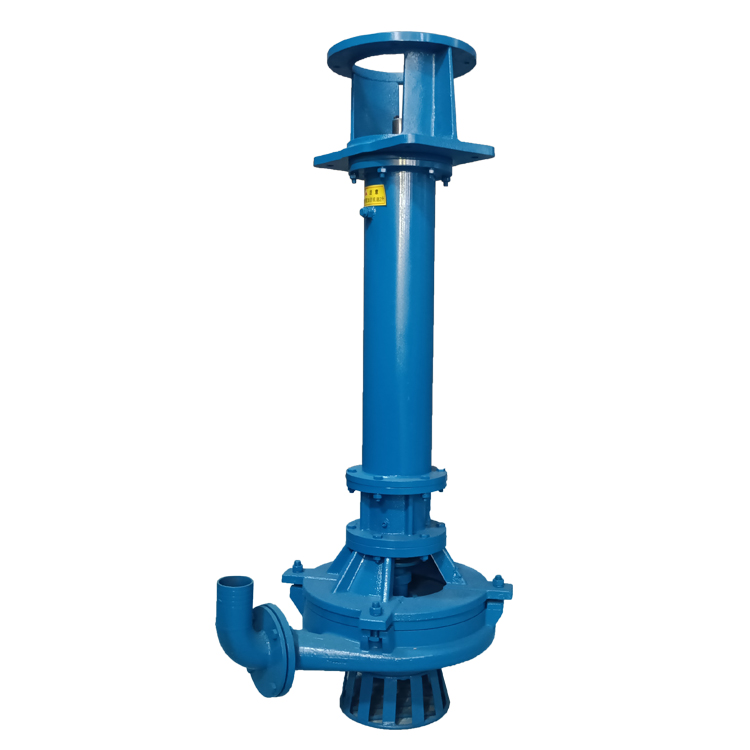

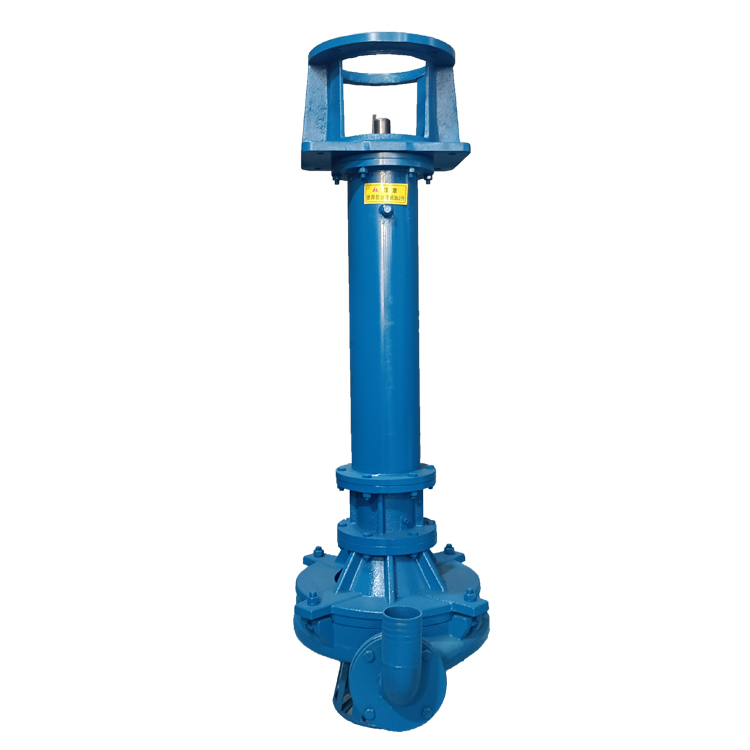

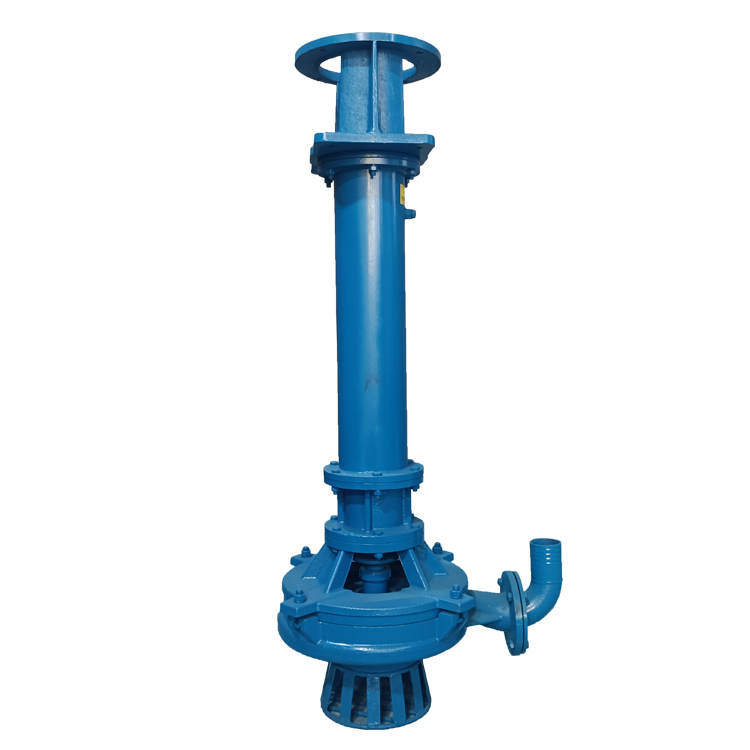

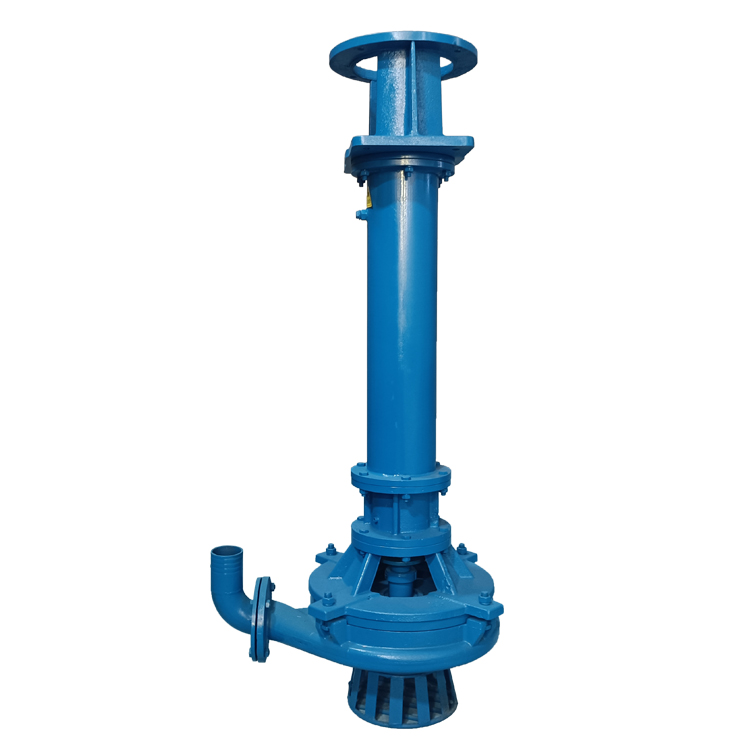

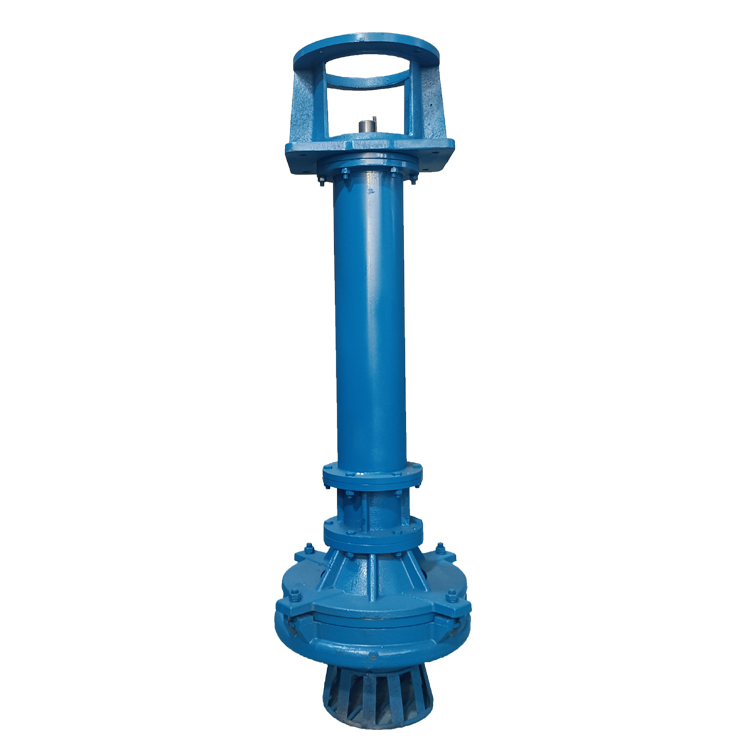

YZ Vertical Slurry Pump

YZ series slurry pumps advantages are as follows:
1. Long service life: professional bearing sealing, isolating the immersion of mud and gravel, effectively ensuring the service life of the bearings.
2. Equipped with mixing impeller: The impeller is a semi open impeller, equipped with a stirring impeller at the extension of the suction edge of the impeller.
3. Maintenance free: There are no bearings between the fixed plate and the impeller or pump casing, and there is no seal or support, which is maintenance free.
4. High flow rate capacity: can be reached 600m3/h.
5. Comprehensive performance is good, high head: long distance and high head transportion, single set head can reach to max 61m.
6. Diameter size:outlet size from 50mm to 200mm.
7. High corrosion, abrasion resistance widely material optional: metal flow parts including: (Cr27Mo),(Cr30MoNi),(Cr30MoNiCu) material etc. PH value 1.0-14.
8. Widely application: all slurry, mud and bad corrosive medium can be transported, widely used in industry of mining, electrical power, metallurgy,coal, construction etc.
9. Driving engine of motor.
10. Our company passed ISO certificate and all of our pumps pass CE certificate, comply with international standards.
11. Energy saving and cost reducing: pump itself water conservancy design advanced and mature. In the mode of traditional direct start increasing soft start and frequency start methods, it make sure energy saving and protection devices; Adjust the speed by soft connection mode in order to achieve the maximum utilization and tower results of work.
12. Easy operation, lower noise and vibration.

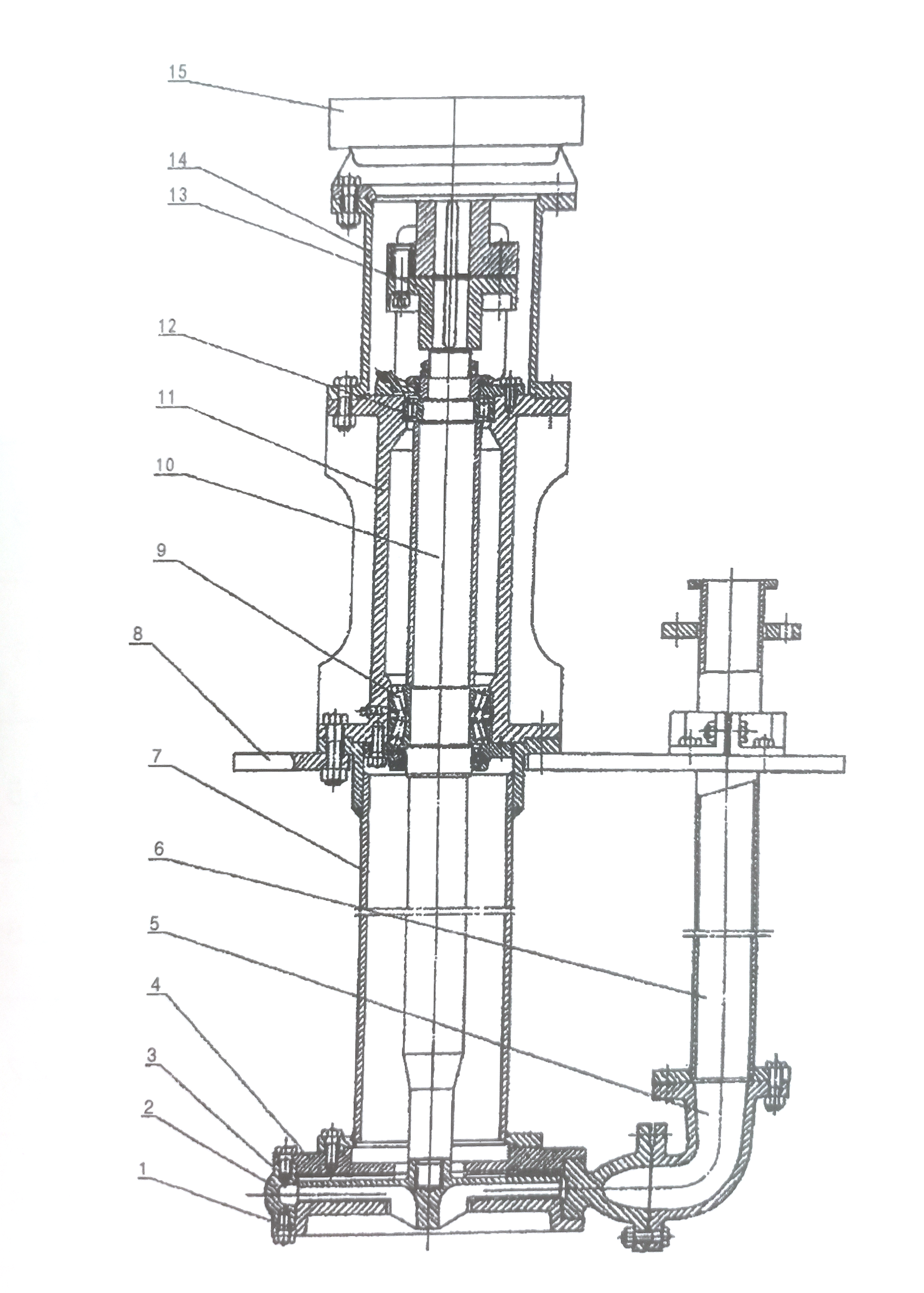

YZ series slurry pumps construction:

1. Front cover
2. Pump body
3. Impeller
4. Pump cover
5. Water outlet elbow
6. Water outlet pipe
7. Connecting pipe
8. Fixed disc
9. Bearings
10. Axis
11. Bearing body
12. Bearings
13. Coupling components
14. Motor base
15. Motor

Product Parameters

The following performance parameter table only shows part of the products. For details, please consult our company's account manager, so that you can choose products for you more professionally.
